Logistic Tricycle Pick Up

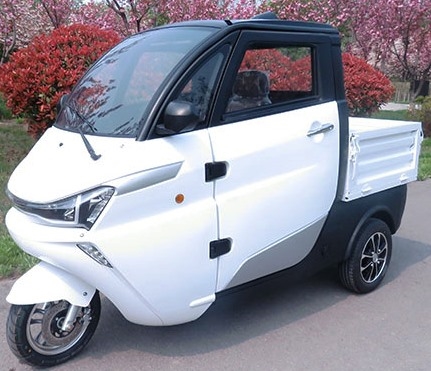

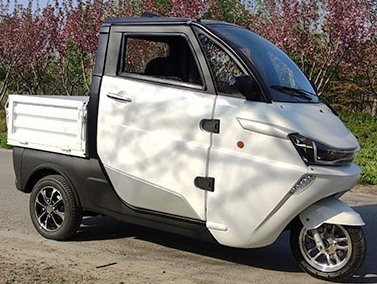

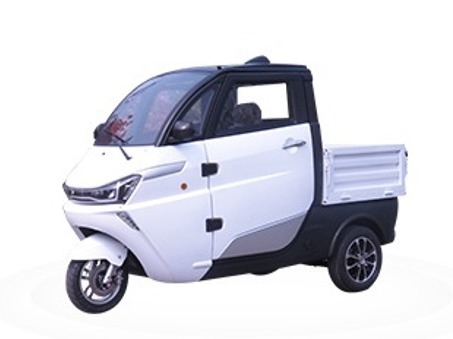

J1-C Logistic Tricycle Pick Up Electric Vehicle
(105Ah LiFePo4 Battery with BMS and Fast Charging System +3000W Motor) |
| Optional Configurations |
| 100Ah Lead Acid Battery 90Km with 5-6 hours charge |
Optional |
206Ah LiFePo4 Battery with BMS and Fast
Charging System (3-5 hours) 180-+200KM |
Optional |
| Cargo Box 880*1160*995mm |
Optional |
| Cargo Box with Cooling System up to -5°C -18°C880*1160*995mm |
Optional |
| 4000W Motor |
Optional |
| 1:8 Rear Axle for High Speed |
Optional |
| Trailer hook |
Optional |
| Swivel driver's seat |
Optional |
| Standard Configuration |
| Parameter |
L*W*H (mm) |
2750*1200*1760 |
| Wheel base (mm) |
1930 |
| Min. Ground Clearance (mm) |
150 |
| Curb Weight(kg) |
400 |
| Max. Speed (km/h) |
45 |
| Max. Range (km) |
115 |
| Capacity (Person) |
1 |
| Aluminum Cargo Box Dimensions (mm) |
880*1160*400 |
| Rated Load (kg) |
300 |
| Steering Mode |
Handlebar |
| Power System |
AC Motor |
3000W |
| Lithium Battery |
105Ah LiFePo4 Battery |
| Charging Time |
2-3 hours (220V) |
| Charger |
Smart Charger |
| Brake System |
Type |
Hydraulic System |
| Front |
Disc |
| Rear |
Drum |
| Suspension System |
Front |
Independent double Wishbone |
| Rear |
Integrated Rear Axle |
| Wheel Suspension |
Type |
Front 120/70-R12
Rear 145/70-R12 |
| Wheel Hub |
Aluminum Alloy Hub |
| Function Device |
Multi-media |
MP5, Rear Camera,
Bluetooth, USB |
| Electric Heater |
60V 800W |
| Central Lock |
Auto Level |
| One-Button Start |
Auto Level |
| Electric Door and Window |
2&2 |
| LED Light System |
Head, Rear, Turning, Brakeand Reverse Lights |

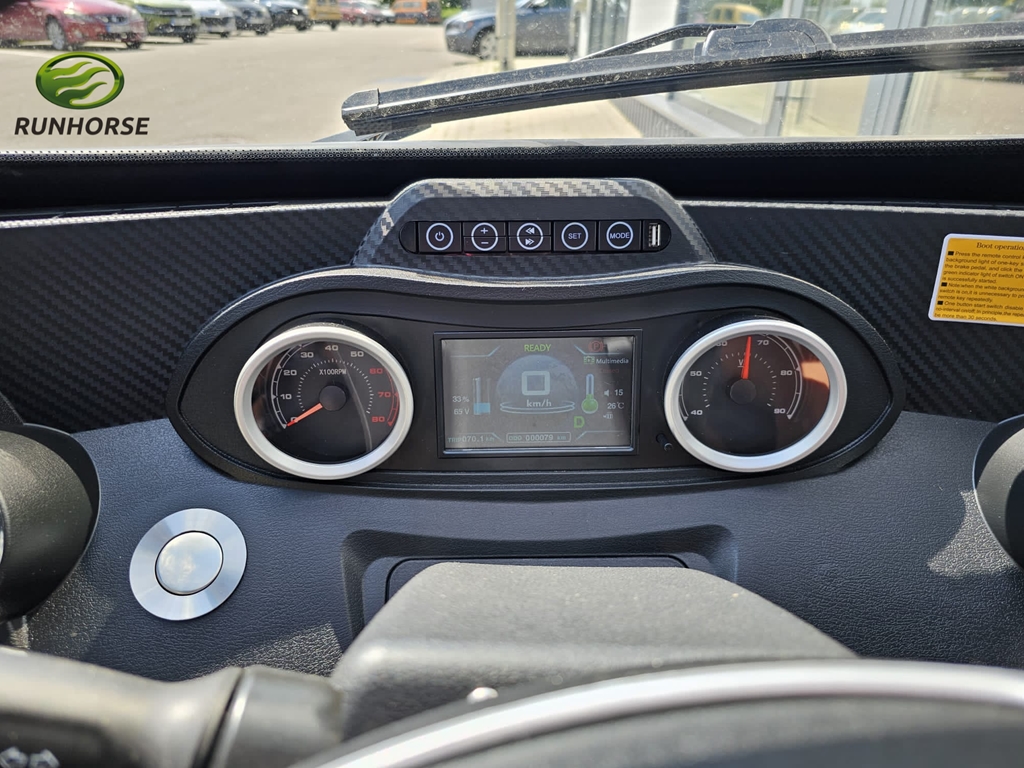

| LCD Display |
Voltmeter, Power Meter,
Kilometer |
| High and Low Speed Switch |
1 |
| Seats |
Genuine Leather |
| Seat Belt |
Front and Rear Seat Belts |
| Sun Visor, Interior Mirror |
2 |
| Wiper |
Electric |
| Mat |
Carpet on whole ground |
