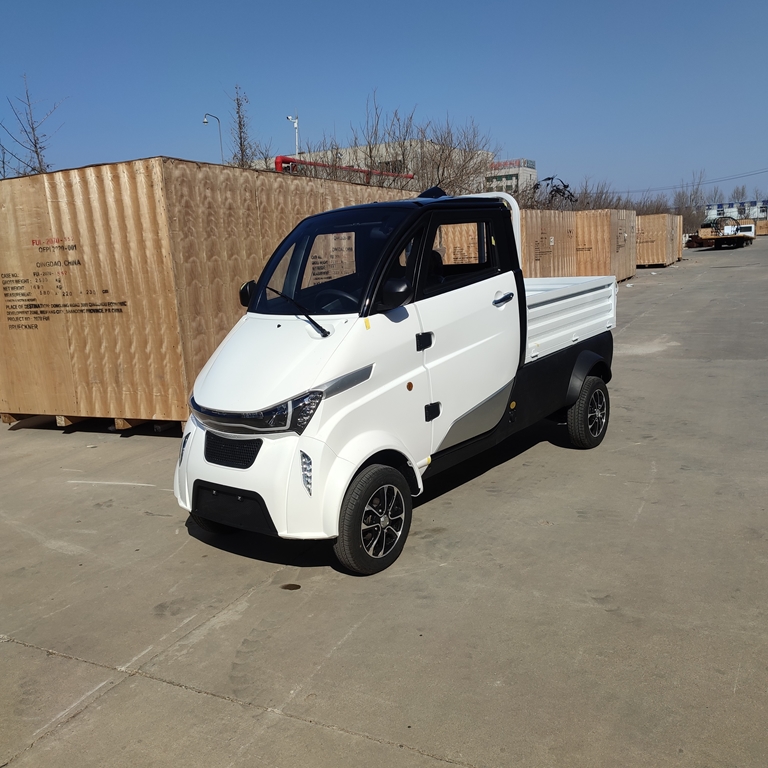

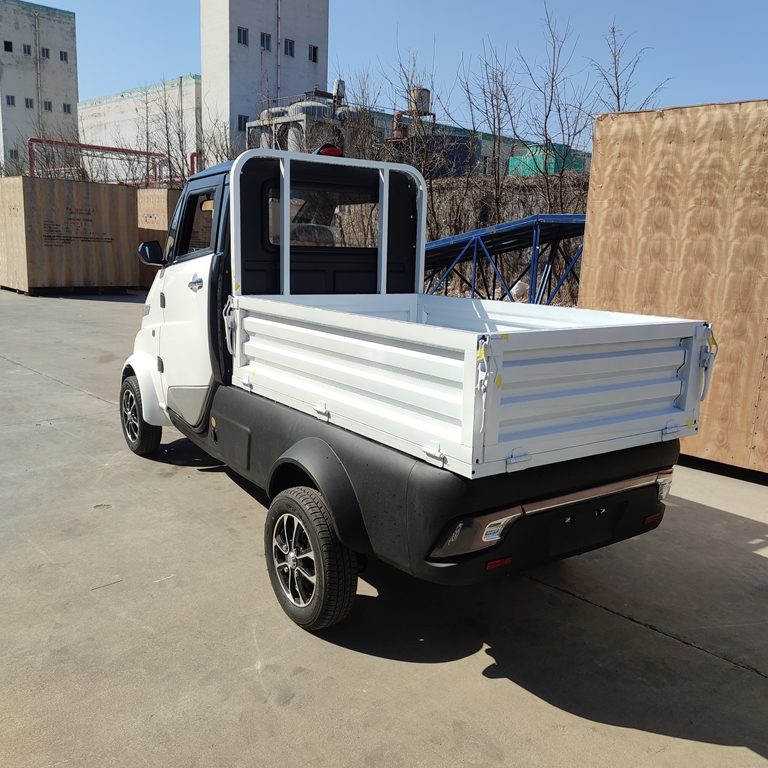

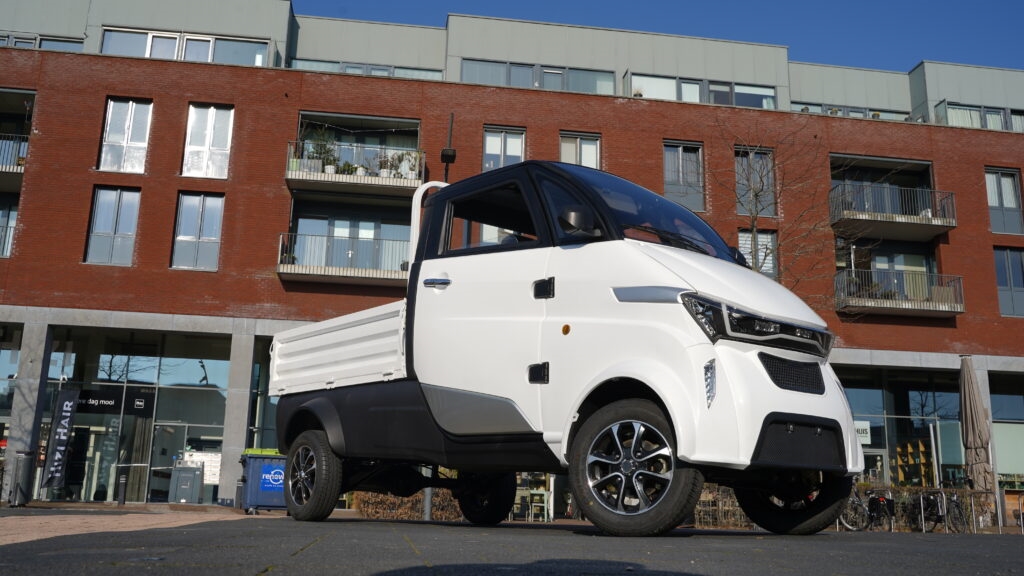

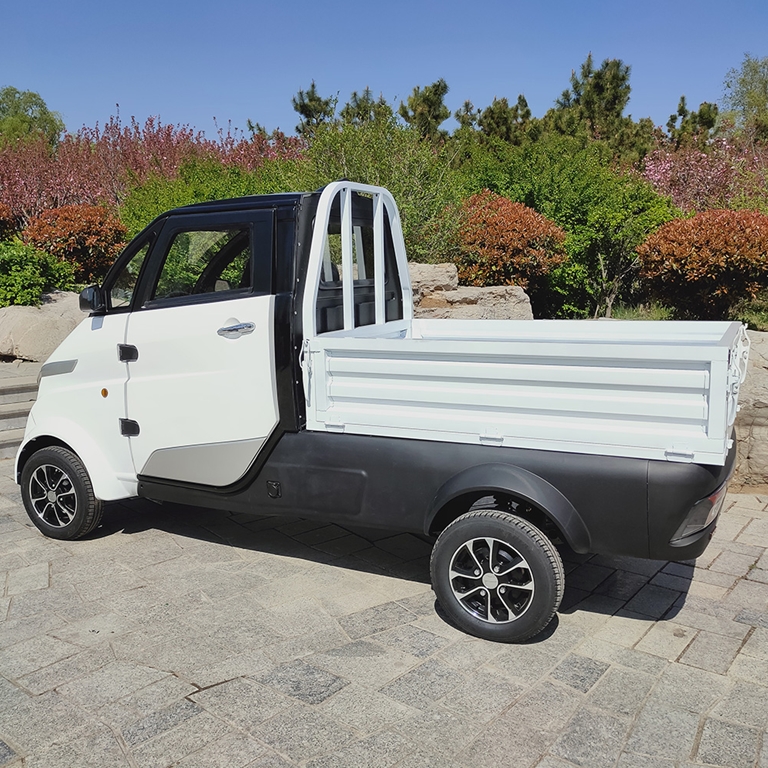

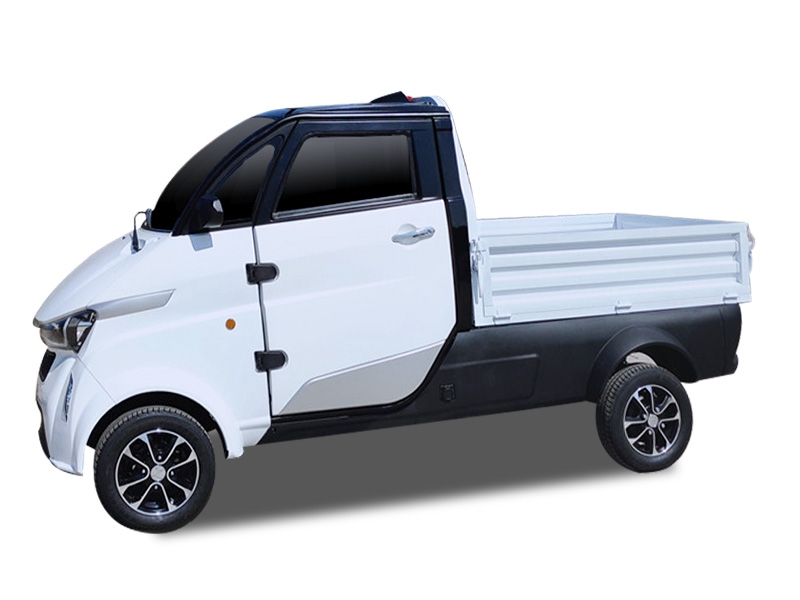

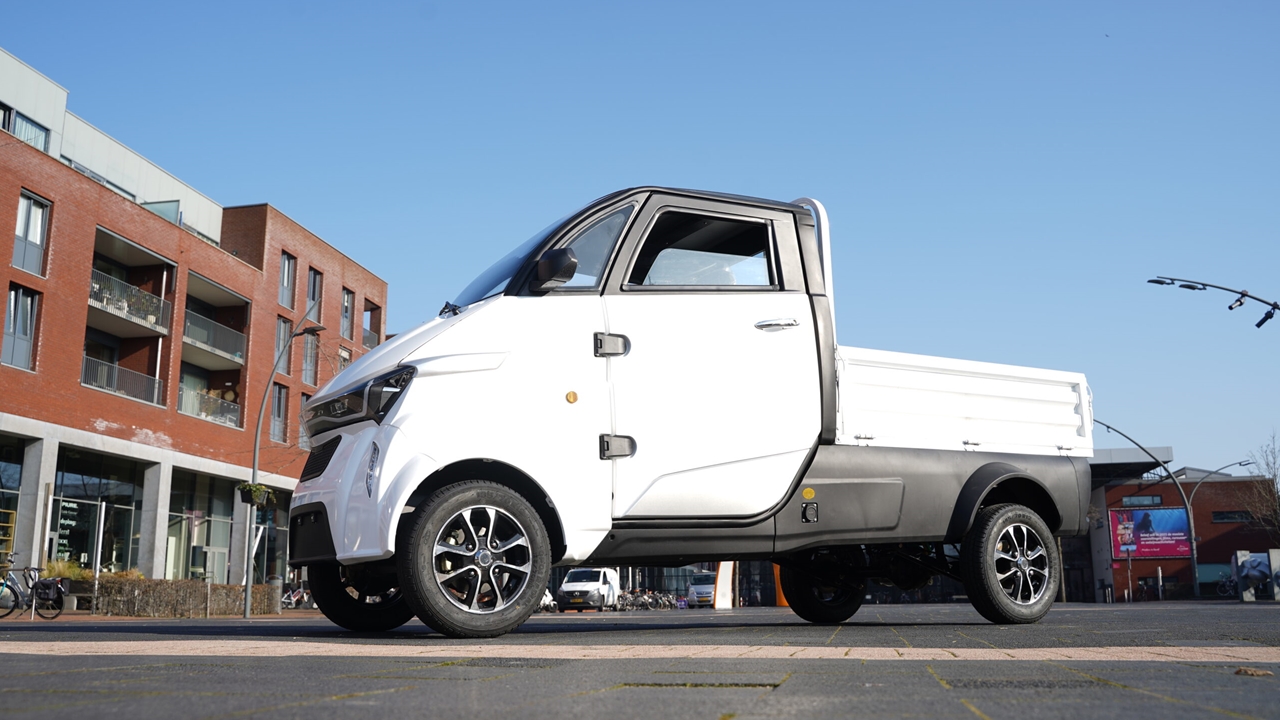

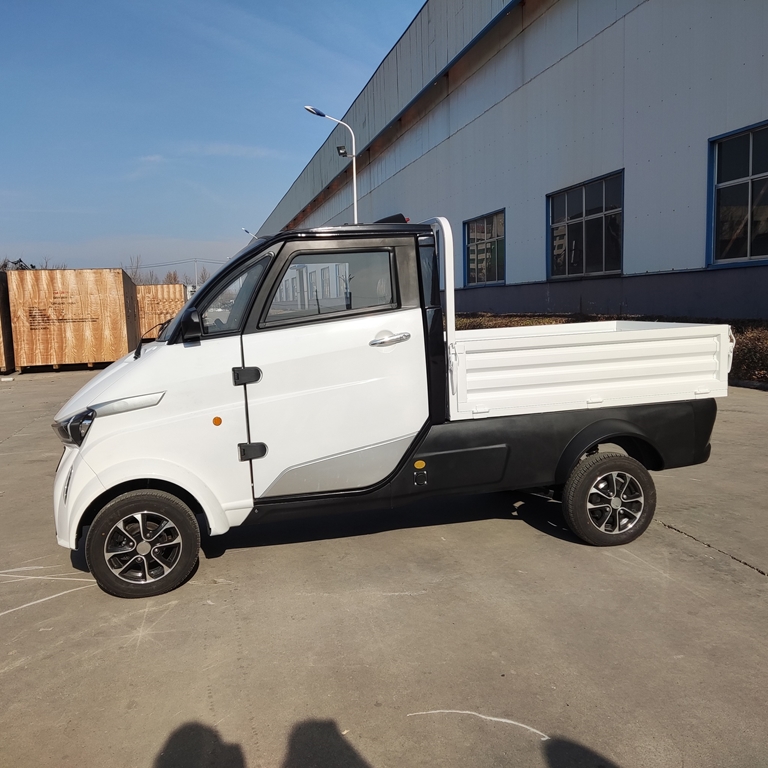

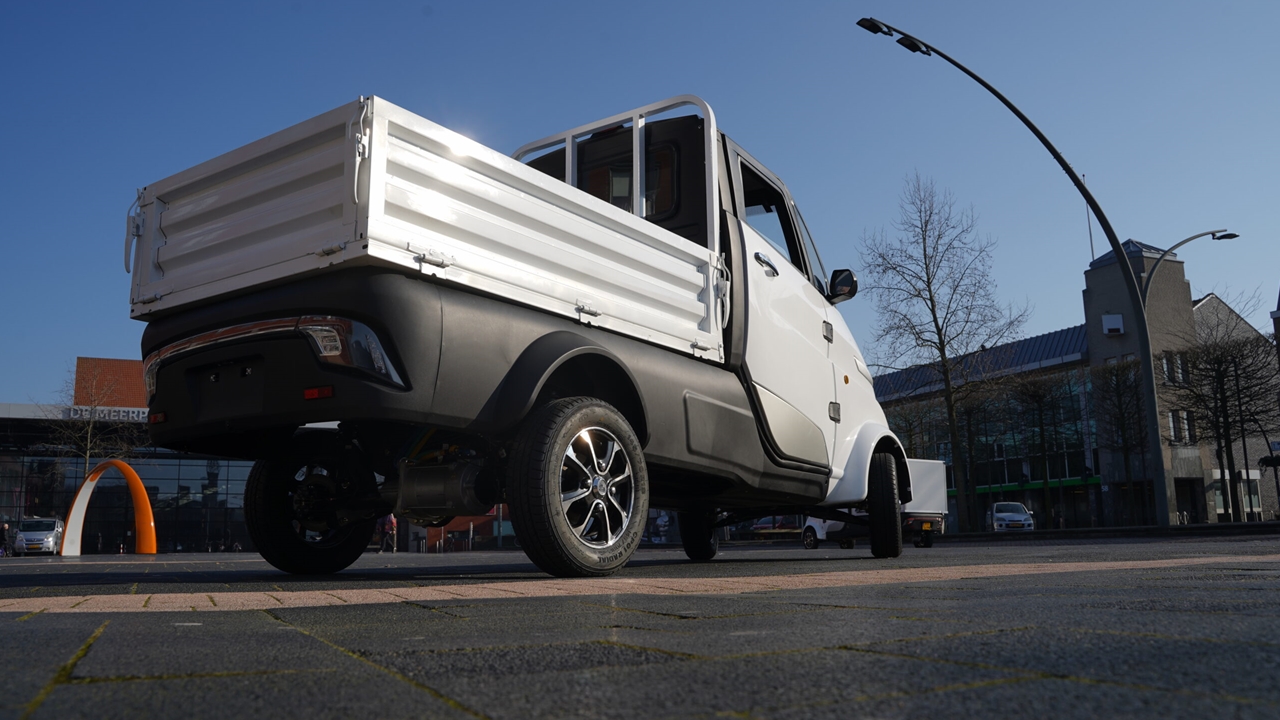

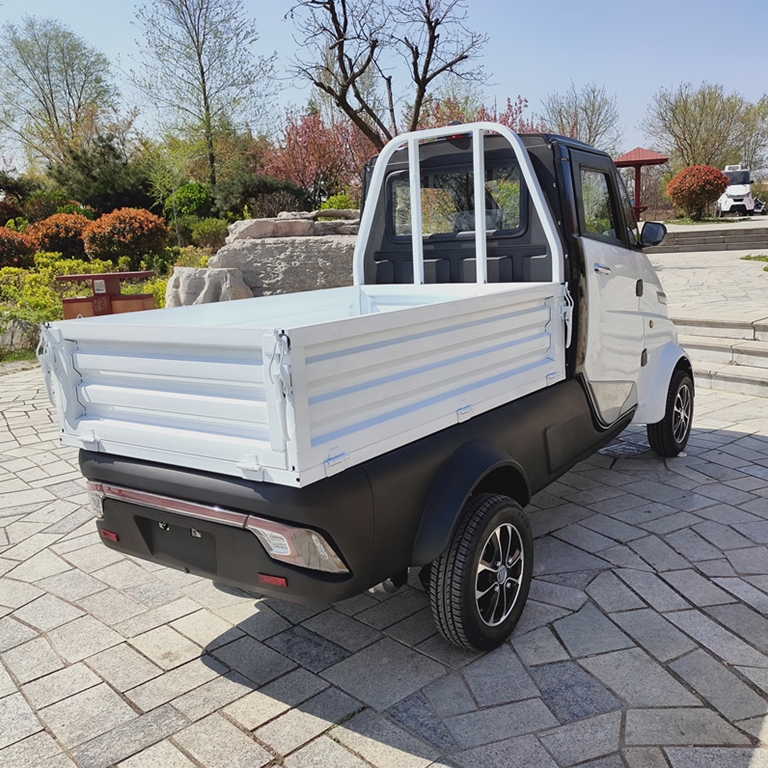

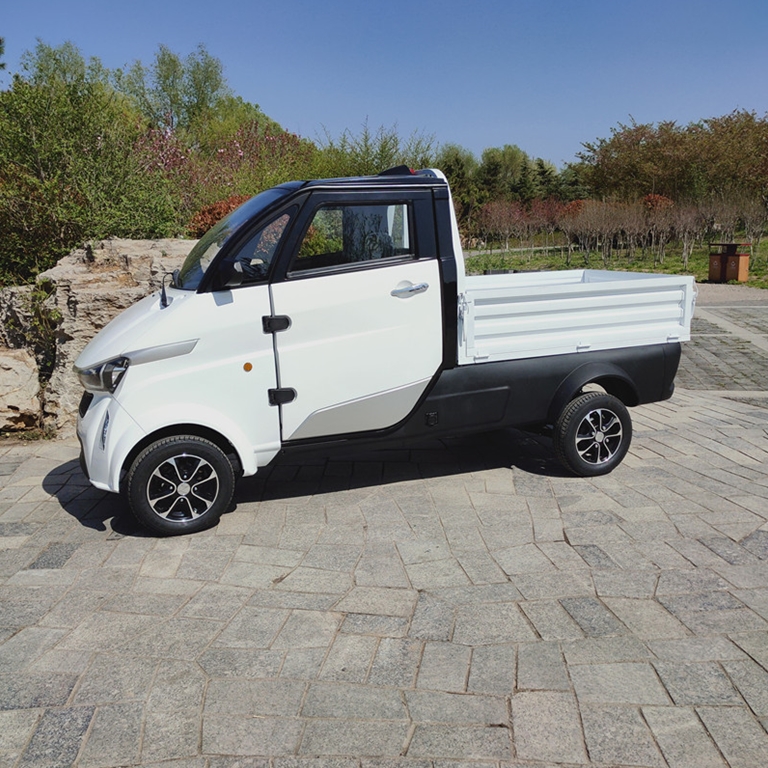

J2-P Logistic Pick Up Electric Vehicle
(105Ah LiFePo4 Battery with BMS and Fast Charging System +4000W Motor) |
| Optional Configurations |
206Ah LiFePo4 Battery with BMS and Fast
Charging System (3-5 hours) 140-170KM |
Optional |
412Ah LiFePo4 Battery with BMS and Fast
Charging System (3-5 Hours) 300-350Km |
Optional |
| Air condition |
Optional |
| Cargo Box 1635*1050*1058mm |
Optional |
| Double Door Logistic Cargo |
Optional |
| Cargo Box with Cooling System up to -5°C -18°C |
Optional |
| 5000W Motor |
Optional |
| Rear Disc Brake |
Optional |
| 1:8 rear axle for high speed |
Optional |
| Trailer hook |
Optional |
| Swivel driver's seat |
Optional |
| Standard Configuration |
| Parameter |
L*W*H (mm) |
3600*1345*1765 |
| Wheel Base (mm) |
2375 |
| Min.Ground Clearance (mm) |
160 |
| Curb Weight (kg) |
500 |
| Max. Speed (km/h) |
52 |
| Max. Range (km) |
95 |
| Capacity (person) |
1 |
| Hopper Size (mm) |
1635*1050*400 |
| Rated Load (kg) |
550 |

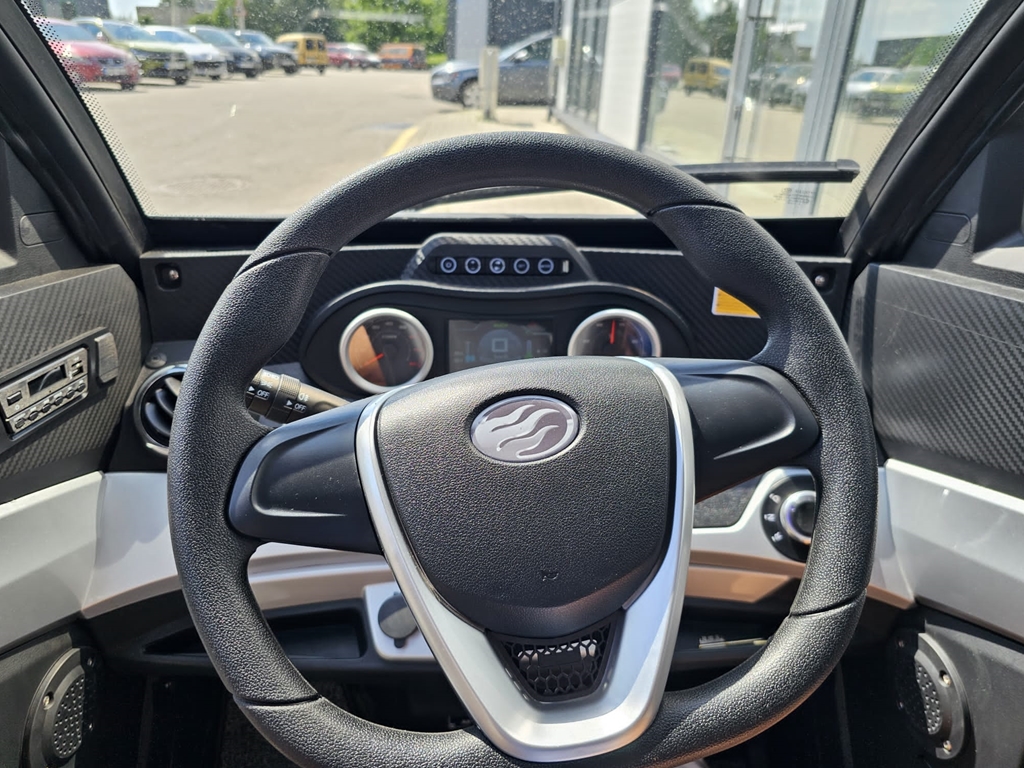

| Steering Mode |
Middle Steering Wheel |
| Power System |
AC Motor |
60V 4000W |
| Lithium Battery |
105Ah LiFePo4 Battery |
| Charging time |
2-3 Hour (220V) |
| Charger |
Smart Charger |
| Brake System |
Type |
Hydraulic System |
| Front |
Disc |
| Rear |
Drum |
| Suspension System |
Front |
Independent double Wishbone |
| Rear |
Integrated Rear Axle |
| Wheel Suspension |
Type |
Front 135/70-R12
Rear 145/70-R12 |
| Wheel Hub |
Aluminum Alloy Hub |
| Function Device |
Multi-medya |
MP5,Reverse Camera,Bluetooth, USB |
| Electric Heater |
60V 800W |
| Central Lock |
Auto Level |
| One Button Start |
Auto Level |
| Electric Doors and Windows |
2&2 |
| LED Light System |
Head, Rear, Turning,
Brake and Reverse Lights |

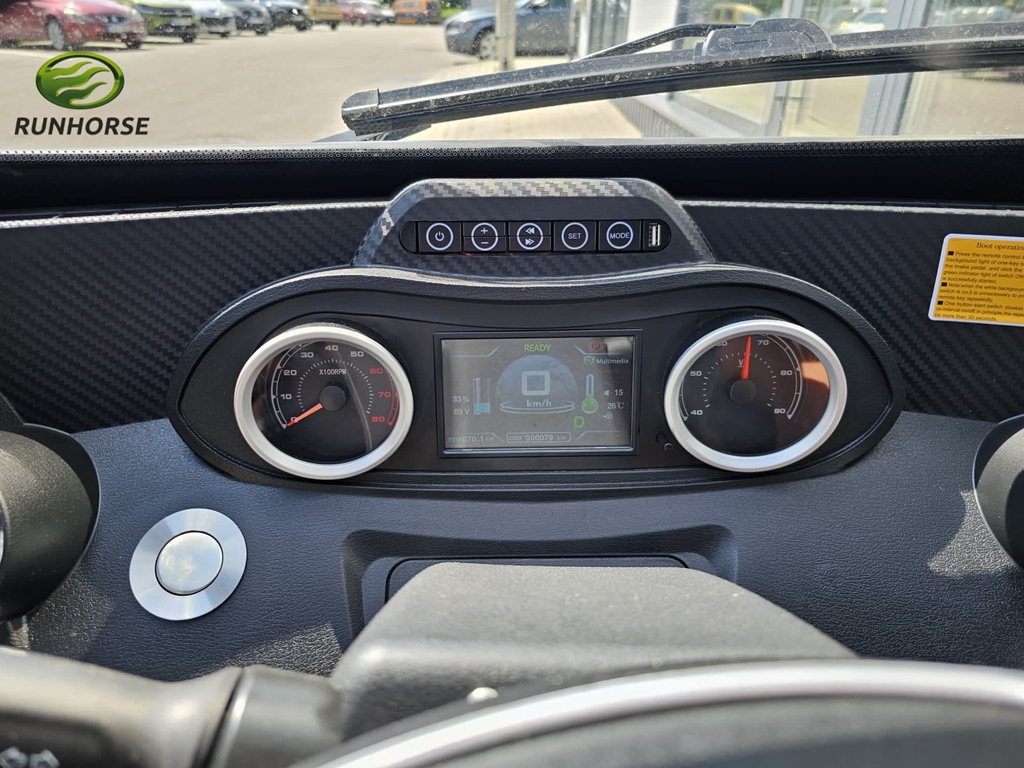

| LCD Display |
Voltmeter, Powermeter,
Kilometer |

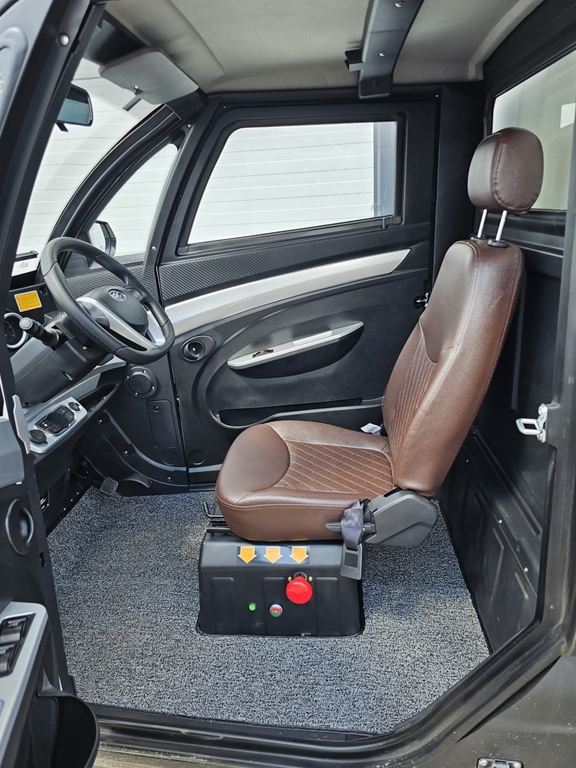

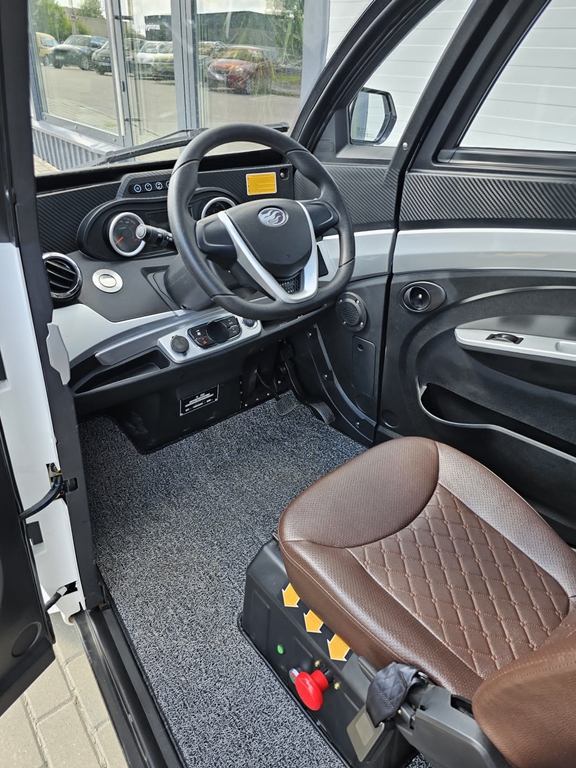

| Seats |
Genuine Leather |
| Safety Belts |
Front and Rear Safety Belts |
| Sunvisor and interior Miror |
2 |
| Wiper |
Electric |
| Mat |
Carpet on whole ground |
