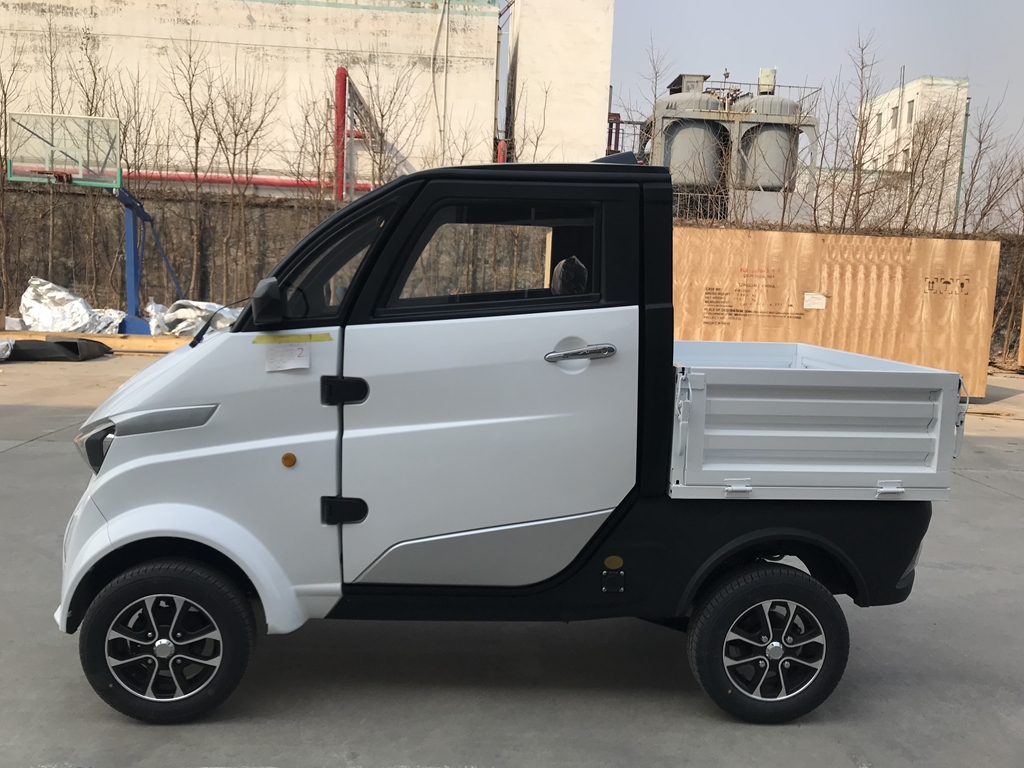

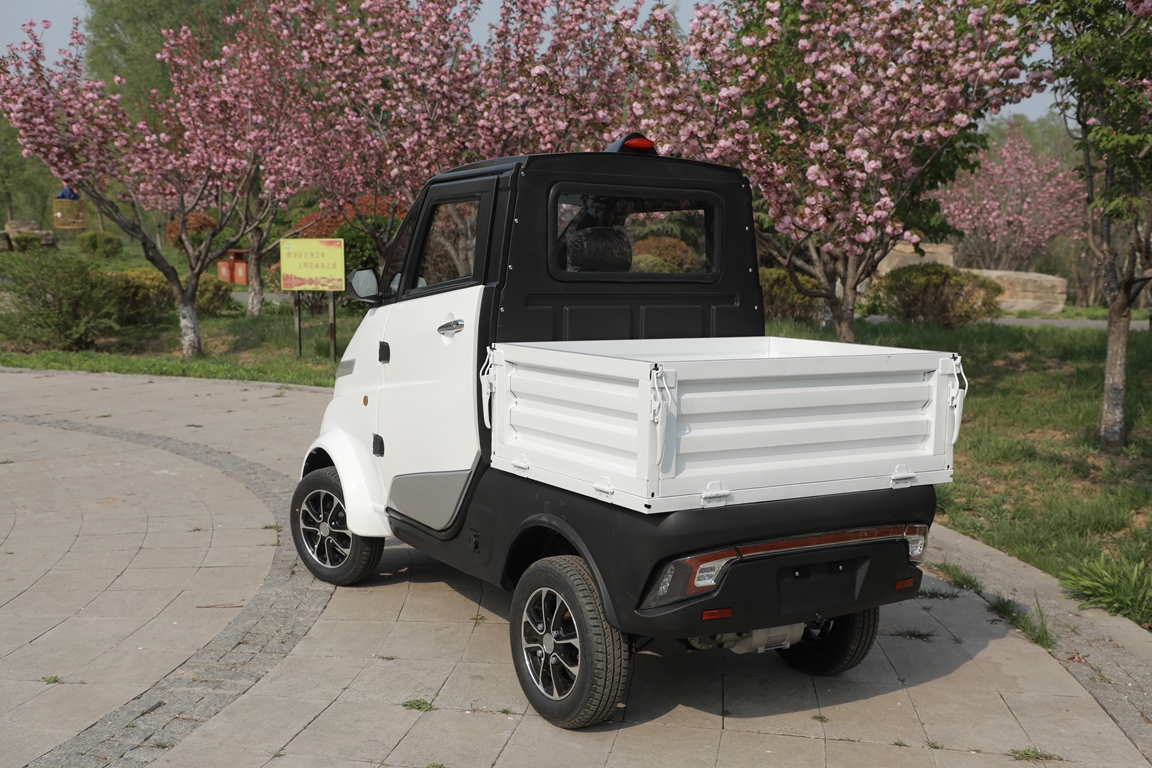

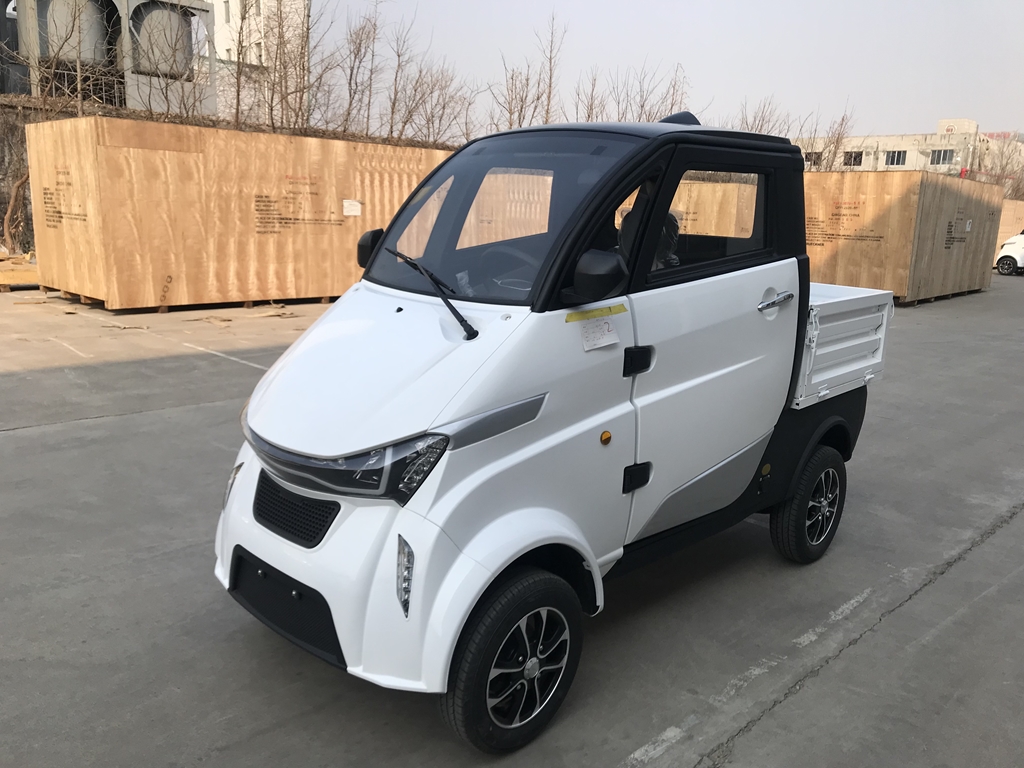

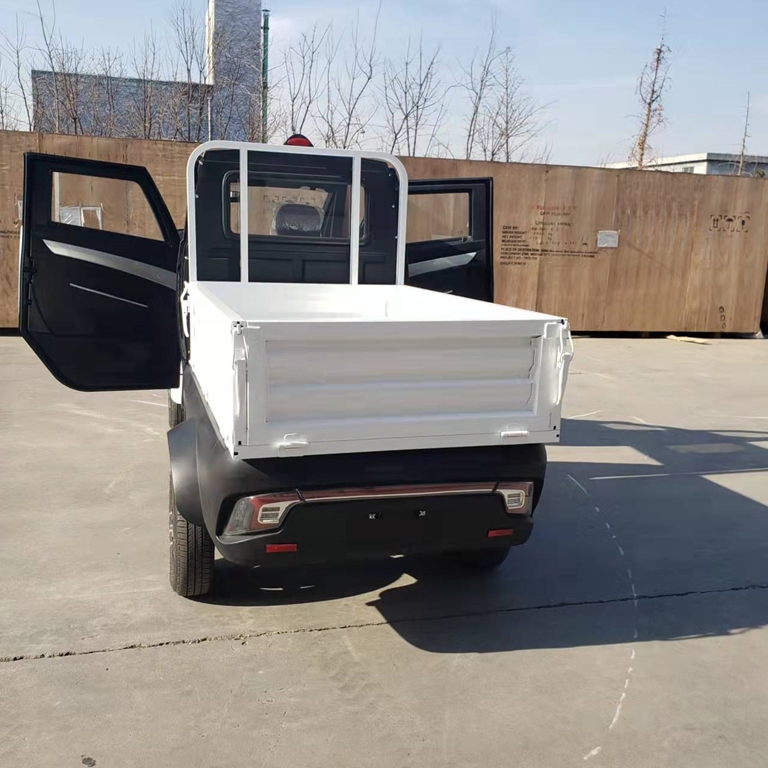

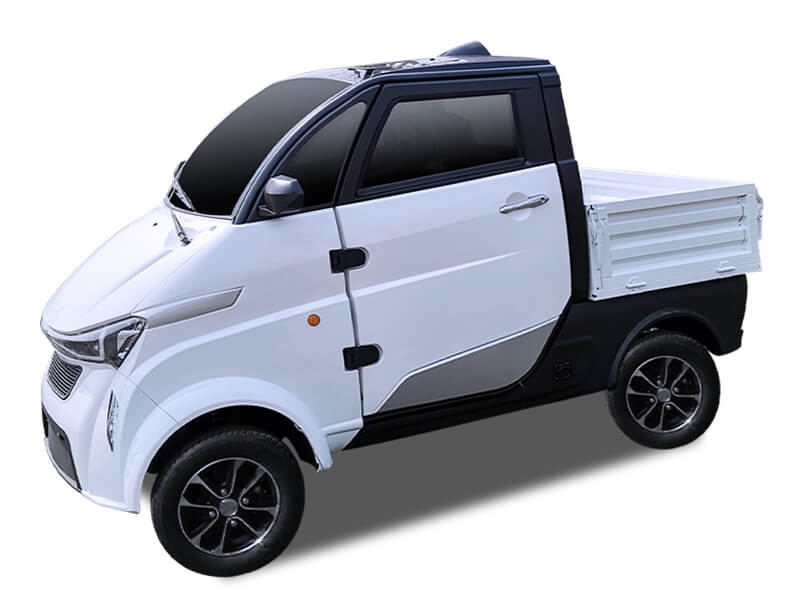

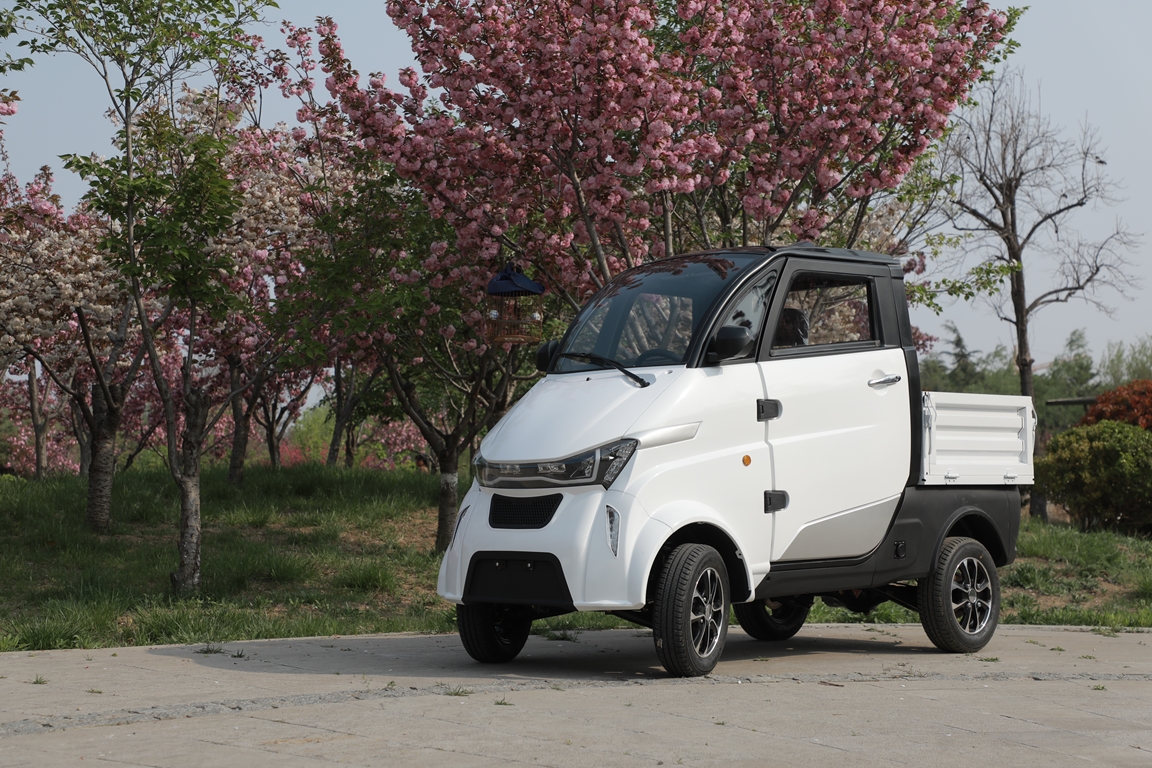

J2-C EEC Approved (L6e)

Delivery solution for every kilometer of the city. It is a short-distance, cost-effective cargo transport vehicle for urban logistics such as cold chain, parcel delivery, express delivery, city logistics, supermarket distribution, etc.

4 wheels, 1 seat

Size: 2890x1180x1780mm

Cargo box dimensions: 875*1080*995mm

Open box dimensions: 875*1080*370mm

Vehicle weight: 500kg

Loading capacity: 330kg

Max. speed: 45km/h

105Ah lithium battery. Max distance 100 km, full charge in 3 hours with fast charging system;

Optional 206Ah lithium battery. Max distance can reach 190 km, full charge in 6 hours with fast charging system.

Color: White & Silver Red & Silver Blue & Silver Gray & Black

Vehicle Details:

1-ABS Resin Plastic Cover and Painting
ABS resin injection molding, which is two-thirds lighter than iron, has excellent comprehensive physical and mechanical properties, impact resistance, and dimensional stability.

Automotive-grade paint, computerized paint mixing, professional spraying equipment.

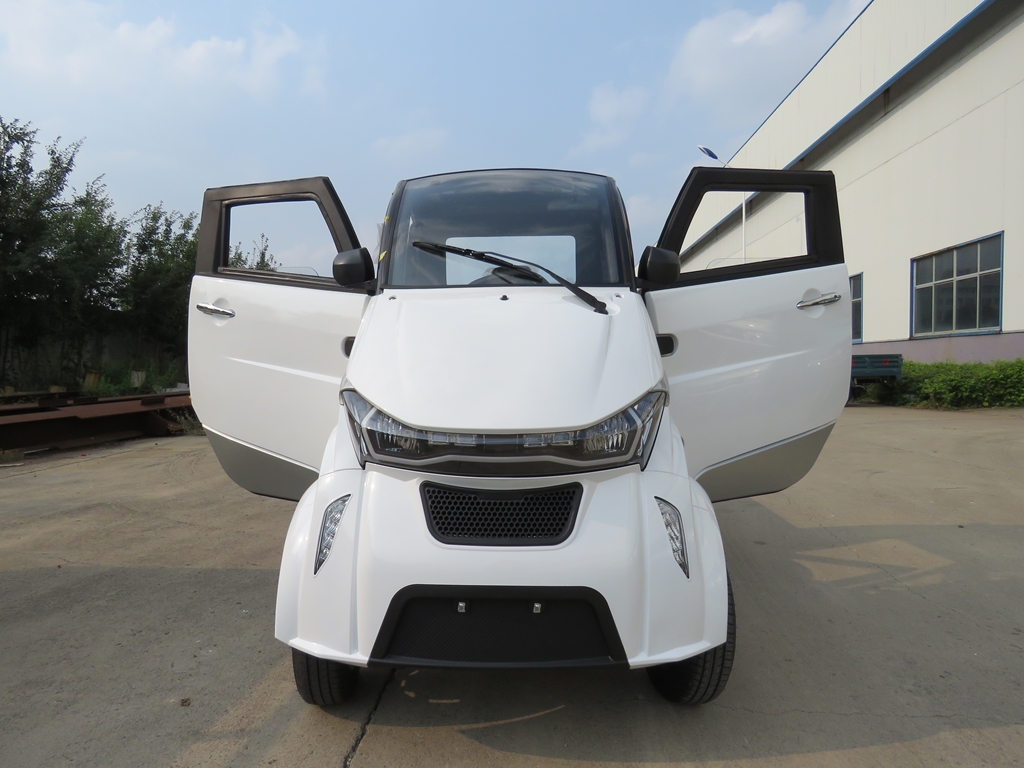

2-LED Light System
Integrated LED front and rear lights
Turn signals, brake lights, reverse lights. 50% increase in light transmittance with low power consumption.

3-Front Windshield
CCC certified tempered and laminated glass enhances visual effect and safety performance.

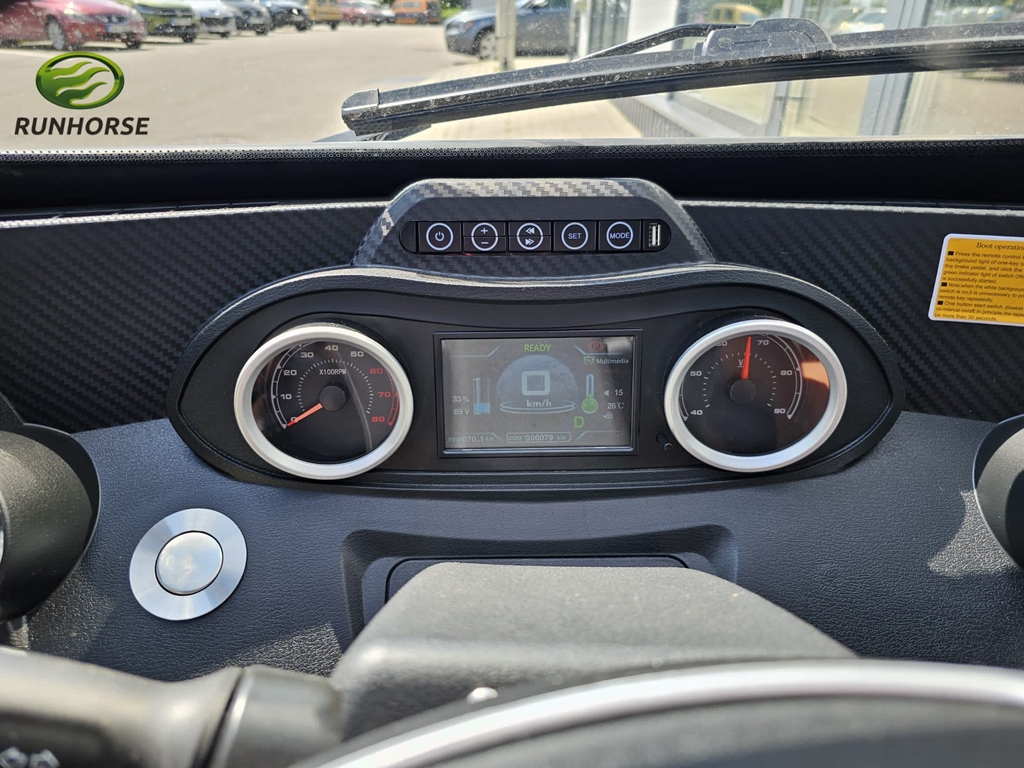

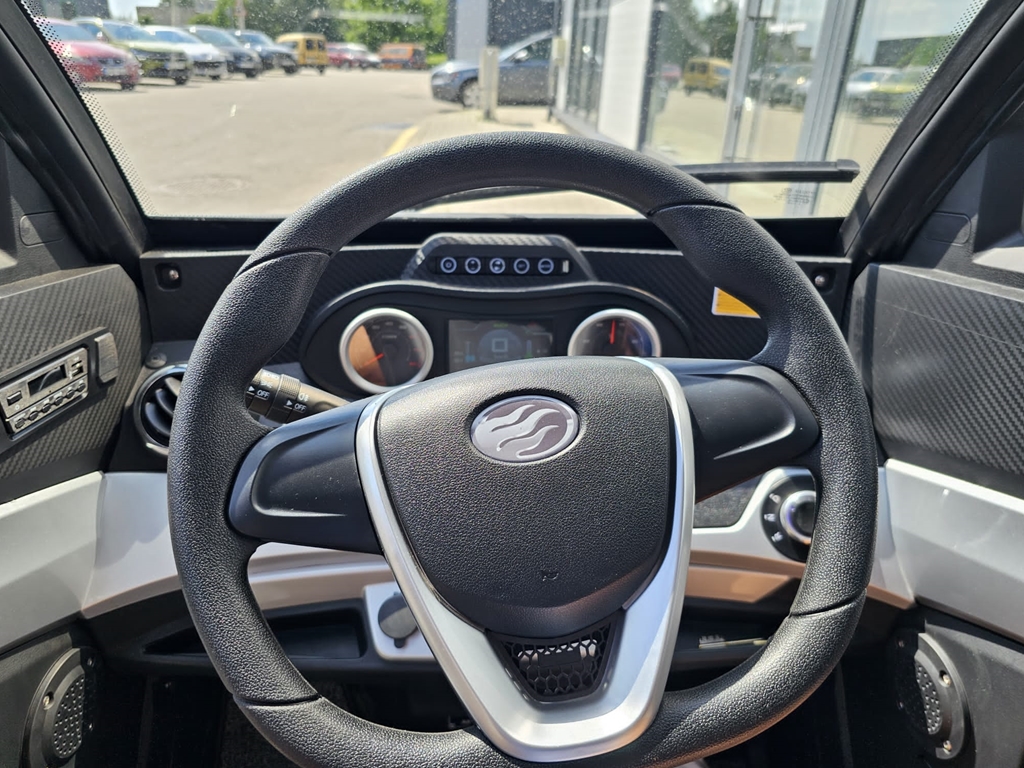

4-Instrument Panel
LED display, voltmeter, power meter, odometer and rear view camera, also Bluetooth, MP5, USB connector.

5-Central Locking and One-Key Start

6-Electric Windows

7-Carpet

8-Optional Air Conditioning

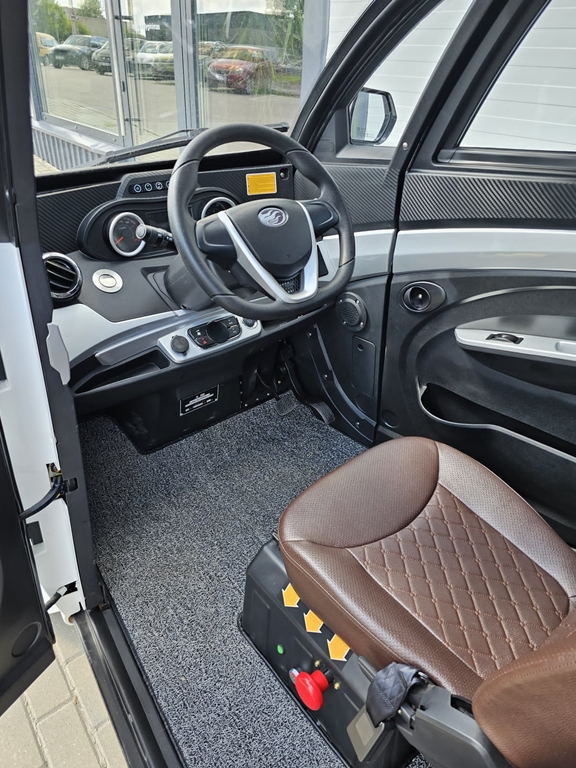

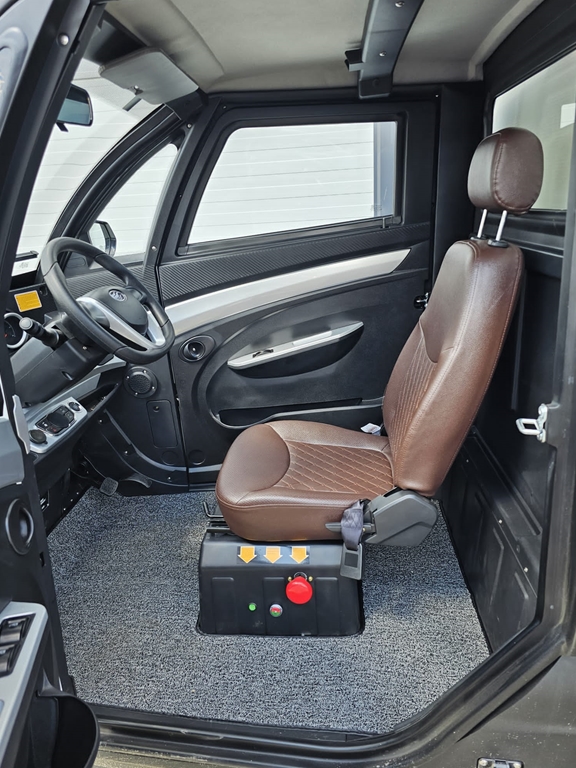

9-Seat Belted Seat

PU Leather, optional swivel seat for easy entry and exit.

10-AC Motor
Powerful and waterproof, lower noise, carbon brushless, maintenance-free AC motor. Equipped with fast home charging system.

11-Lithium Iron Phosphate Battery
With BMS system -30°C to 50°C operating environment, more than 2,500 charge cycles (8-10 years). Equipped with hill start assist control.

Remotely monitored online. Automatic shutdown after full charge.

12-Electronic Control System
Utilize reliable and waterproof En-power electric control system.

13-Brake System

Front disc Rear drum, dual-circuit hydraulic brake.

14-Suspension System
Front axle and suspension are independent suspensions with simple structure and good stability. Rear axle consists of an integrated rear axle and a seamless steel tube welded axle housing, which is low-noise and reliable.

15-Frame & Chassis
GB Standard Steel, phosphated and acidized for corrosion resistance under pickling.

Cargo box options:

1-Cargo Box --BF: Basalt Fiber
Size: 875*1080*995mm

High-performance, a new type of inorganic environmental protection that can directly decompose in the environment after being discarded, with excellent properties such as electrical insulation, corrosion resistance, and high-temperature resistance.

2-Optional cargo box - equipped with cooling and heating system.

Size: 875*1080*995mm

Designed with cooling system for transportation of fruits, vegetables, seafood, beverages, drugs, adjustable between -18°C to 10°C, heating system design for parcel delivery, adjustable between 40°C to 60°C. The cargo box can be divided into two compartments, one for cooling and one for heating.

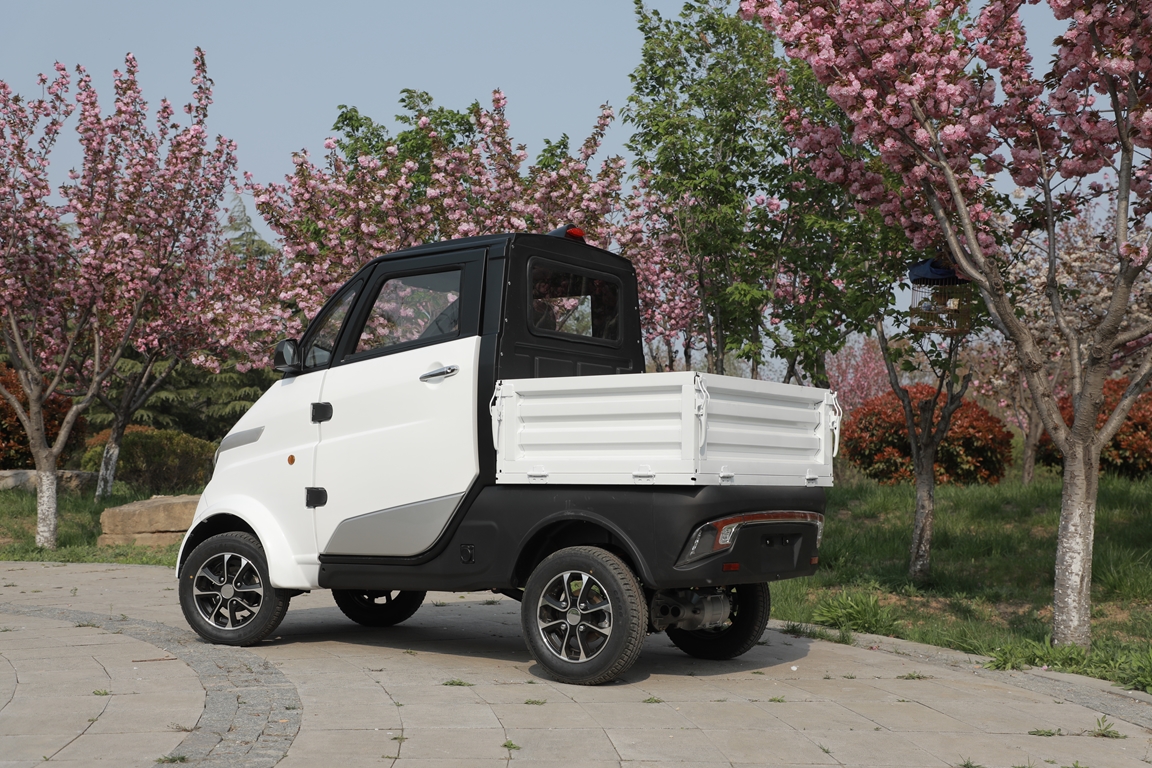

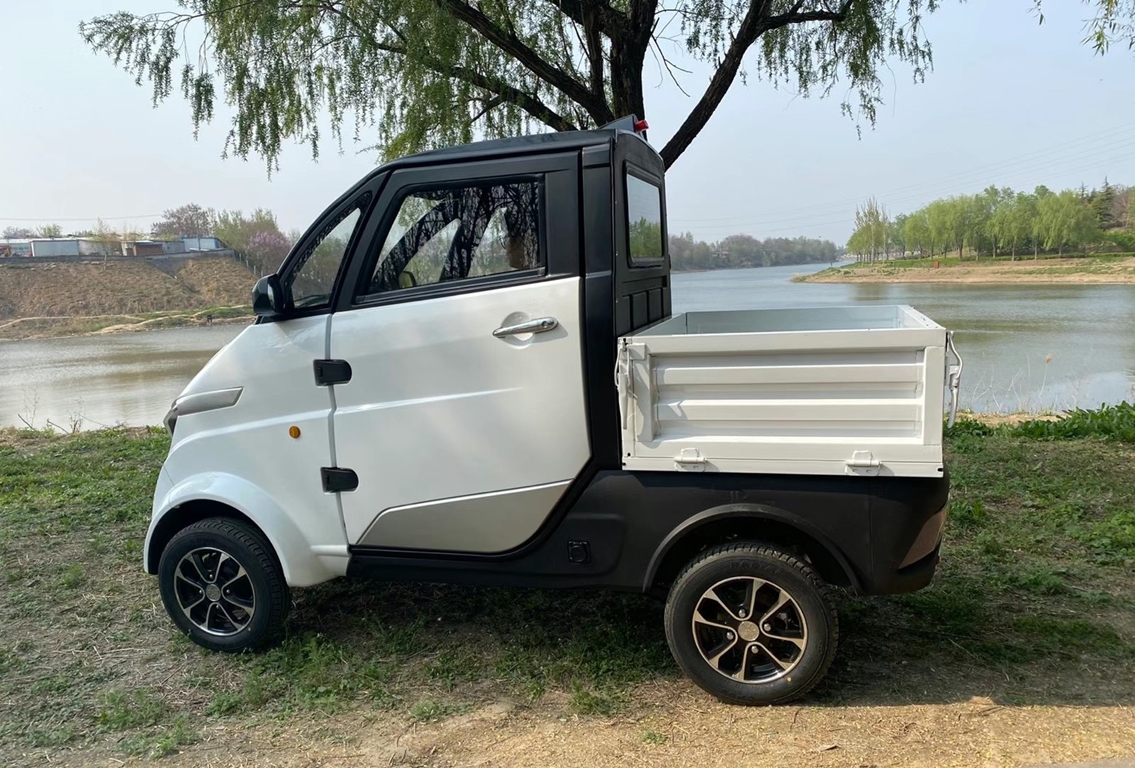

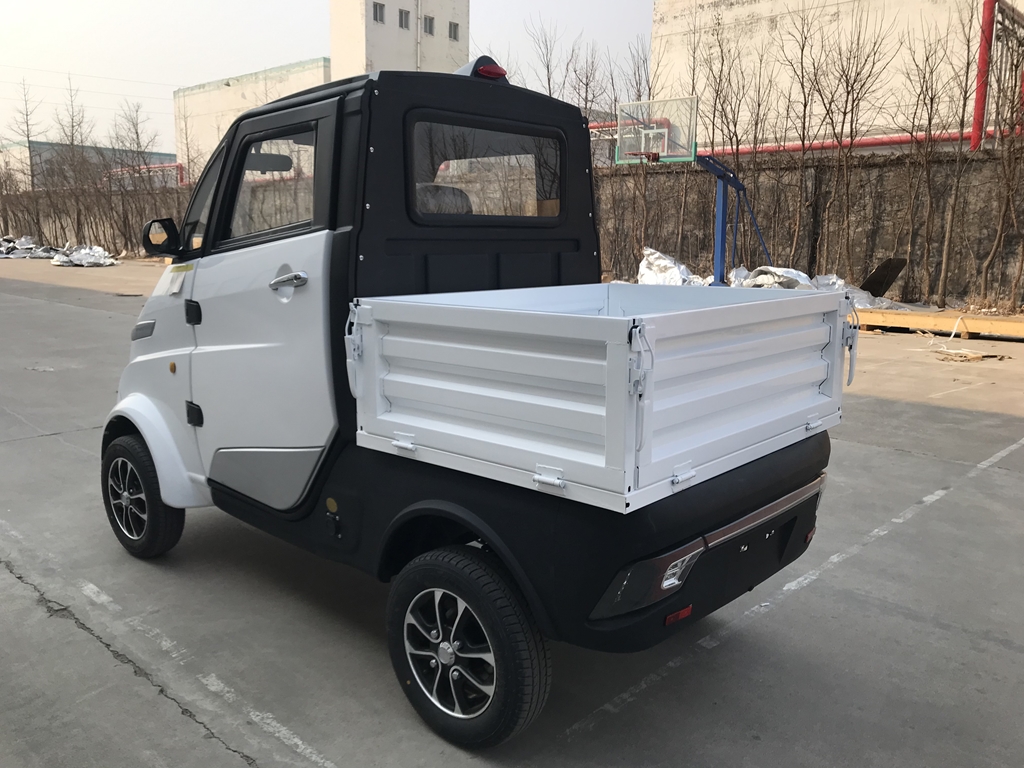

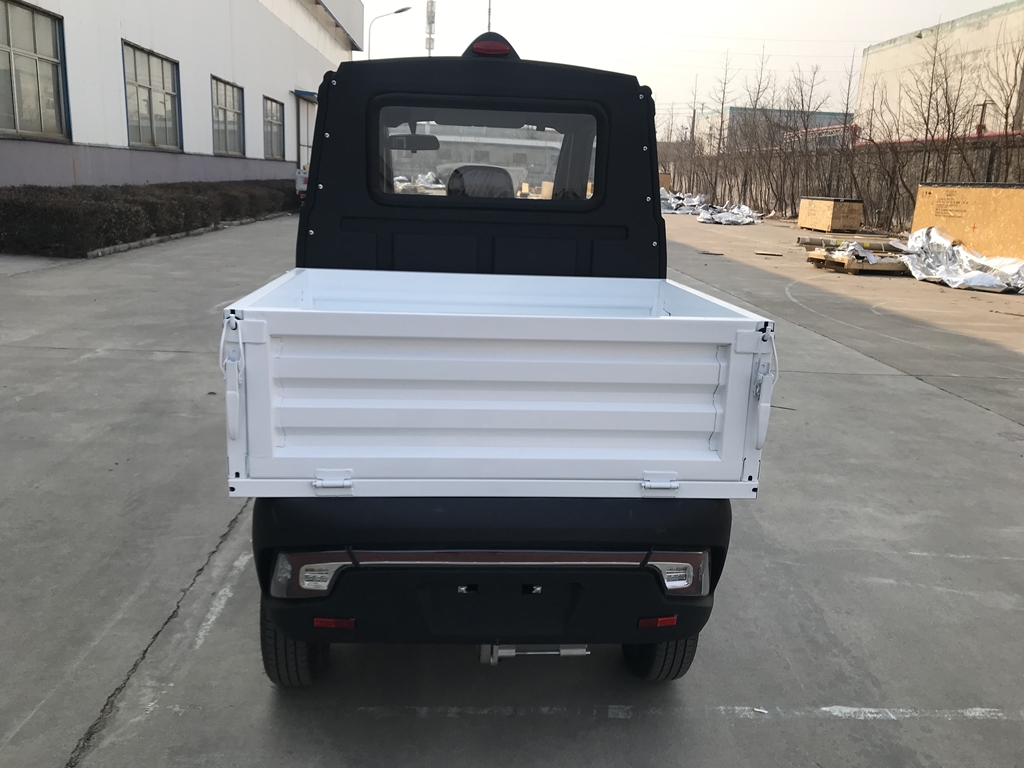

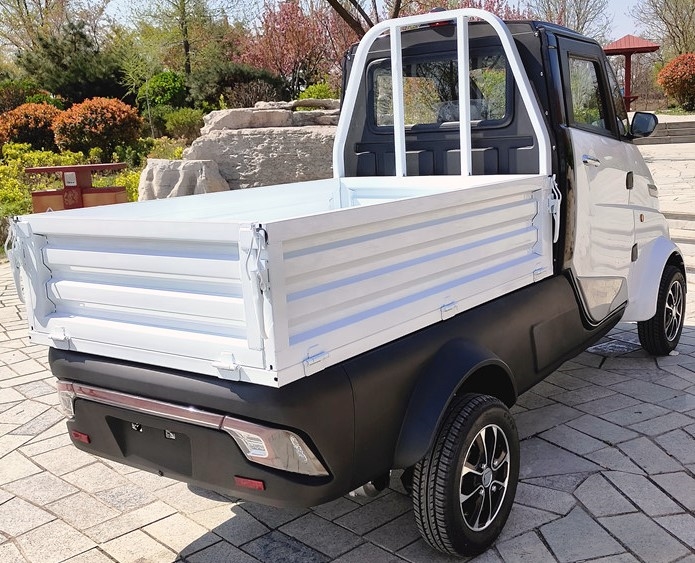

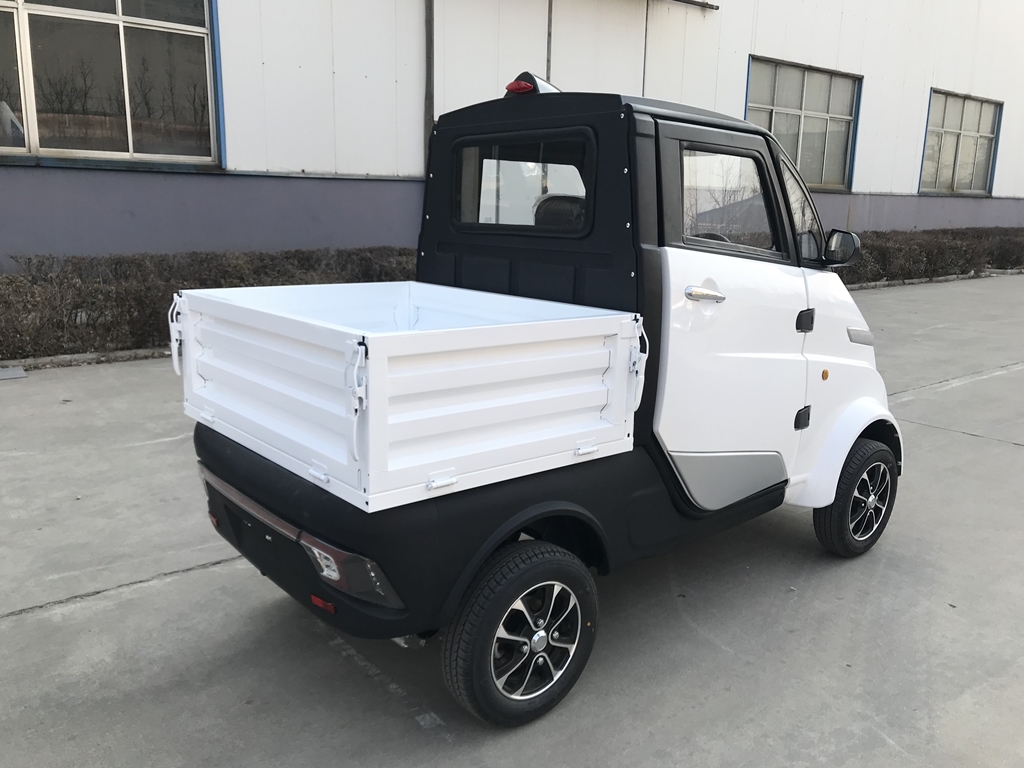

3-Aluminum alloy case
Size: 875*1080*370mm

After heat treatment strengthening and alloy strengthening, its strength will be greatly increased.

Advantages:

1-Cost Saving

CKD (Completely Knocked Down) assembly reduces customs duties and transportation costs, providing savings.

It is very simple to perform local CKD assembly to reduce tariffs and transportation costs.

2-Time Saving
4-5 hours of fast charging can be achieved using household electricity.

3-Vehicle Sharing System
Customers can download the app, scan the QR code on the vehicle to use it. Users can pay the cost directly online. The company can manage all vehicles through phones.
