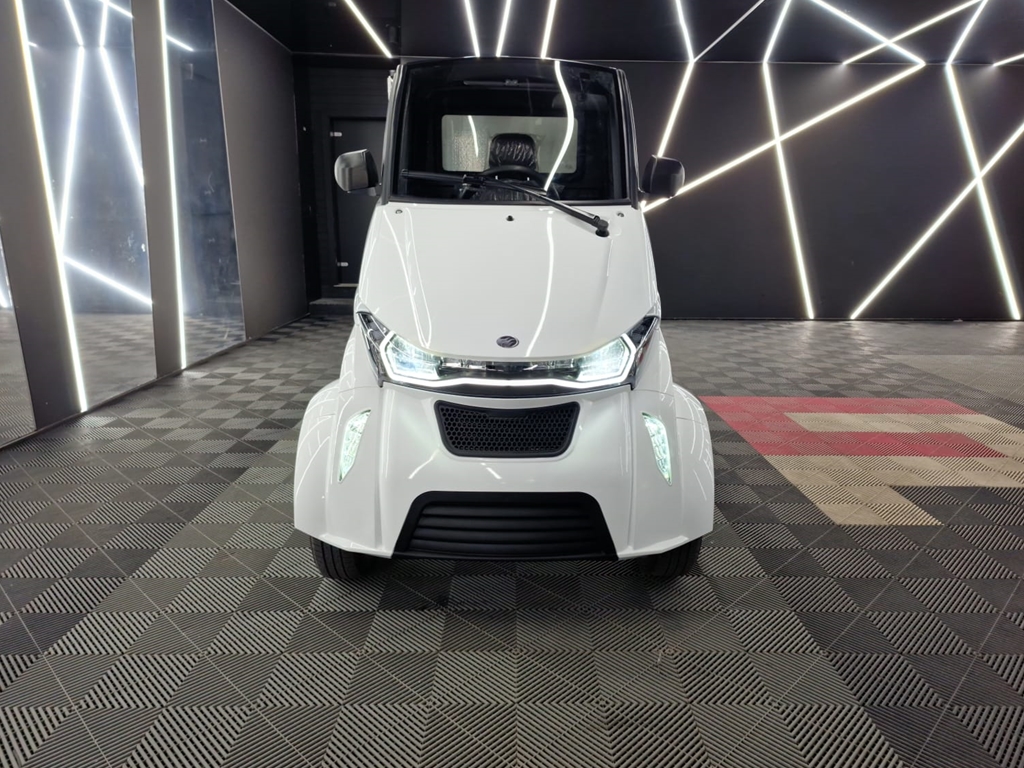

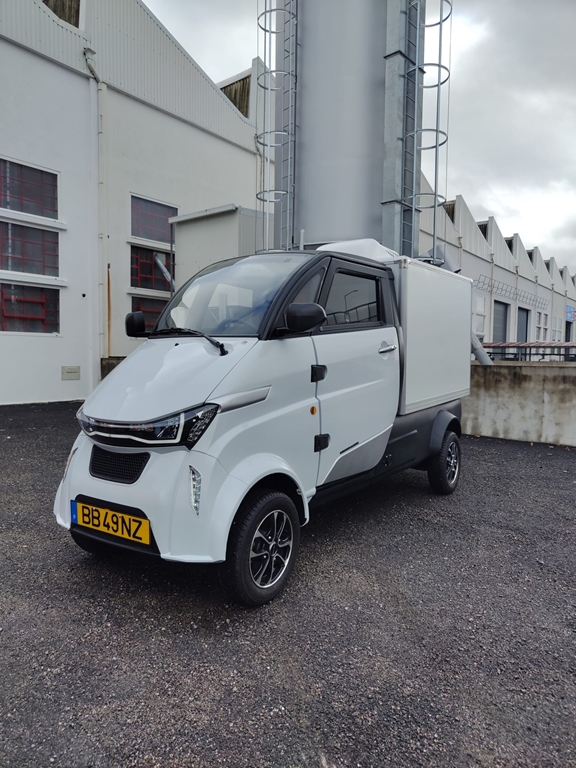

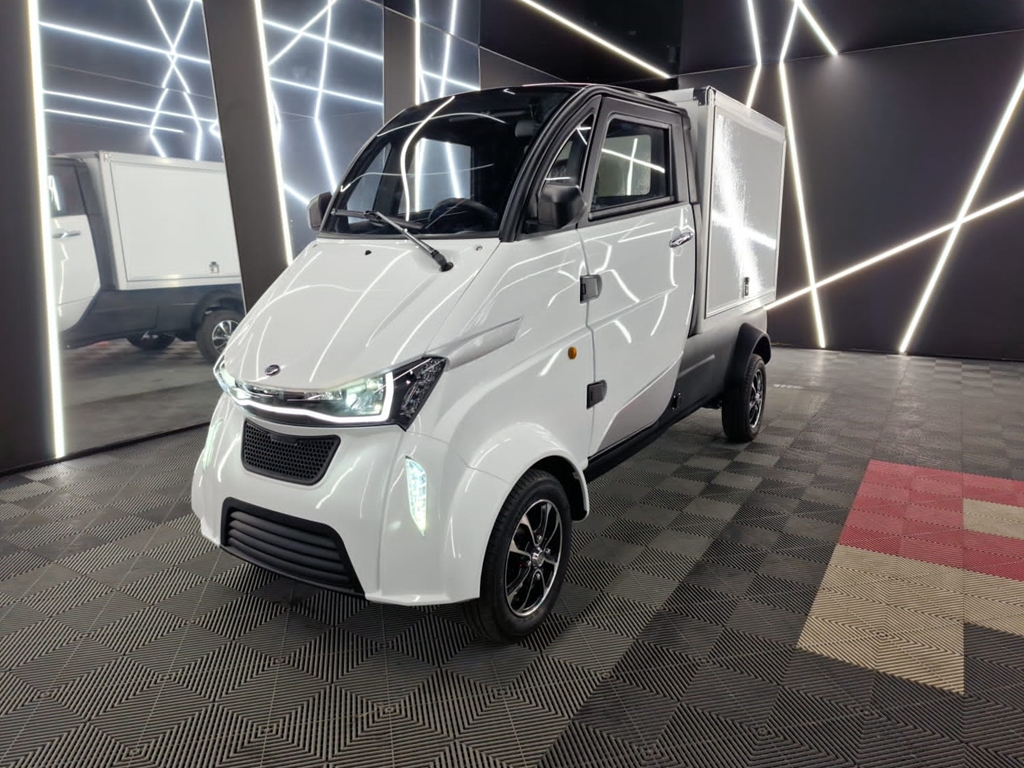

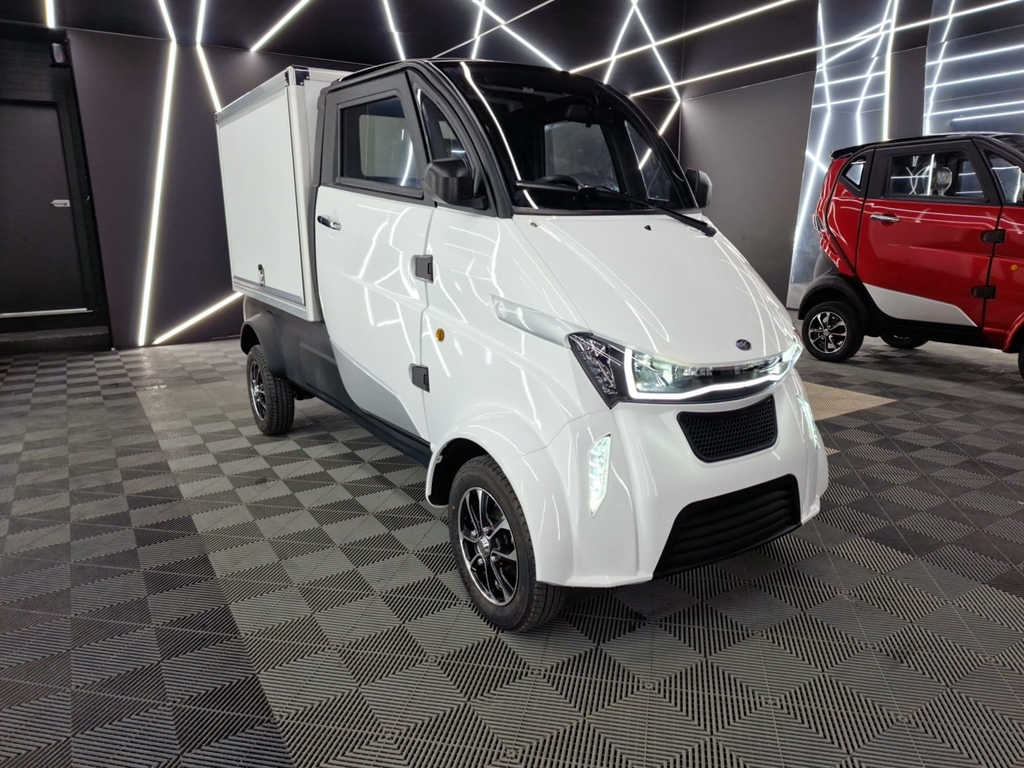

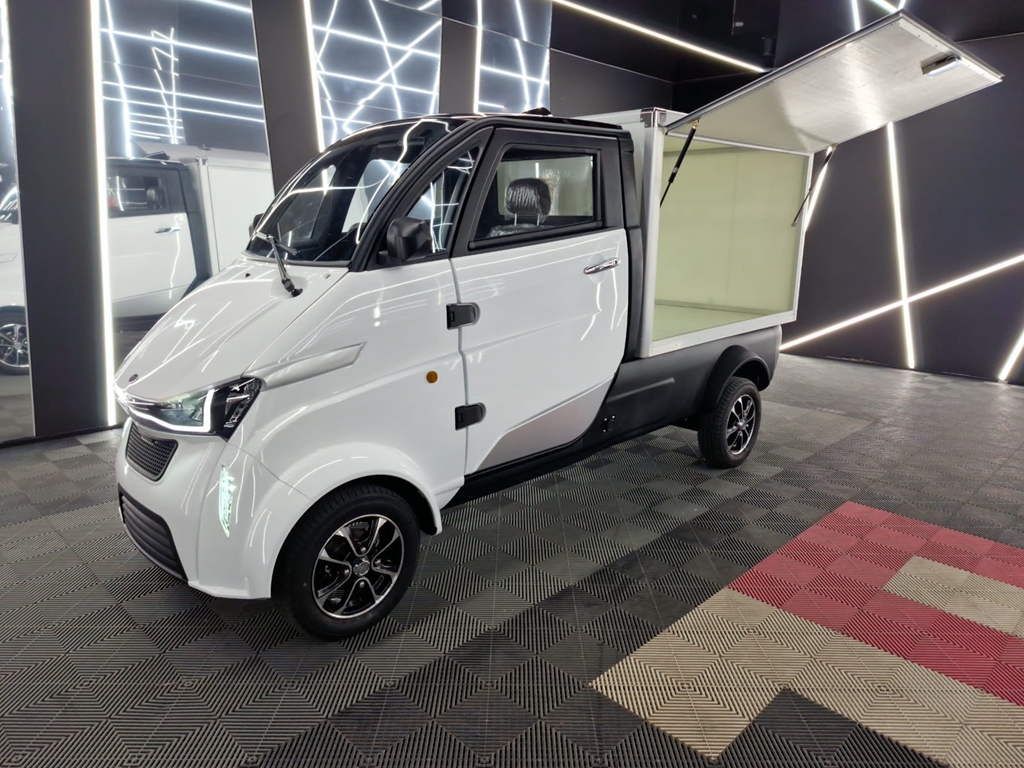

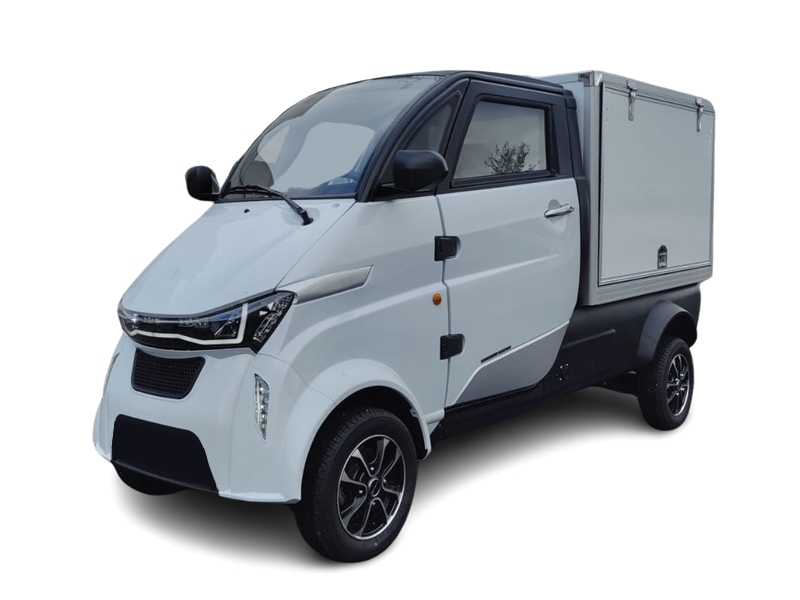

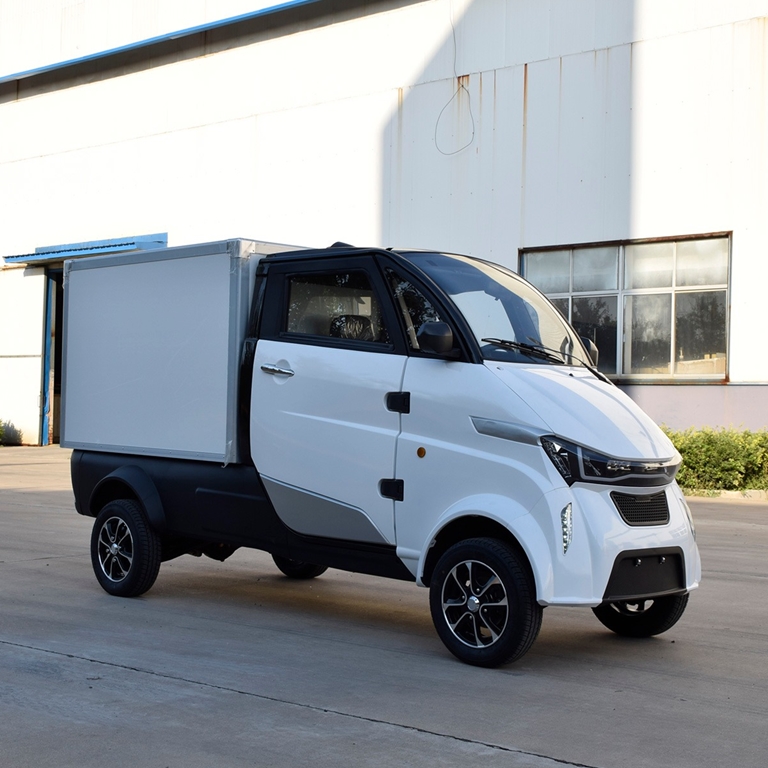

J2-P EEC Approved (L7e)

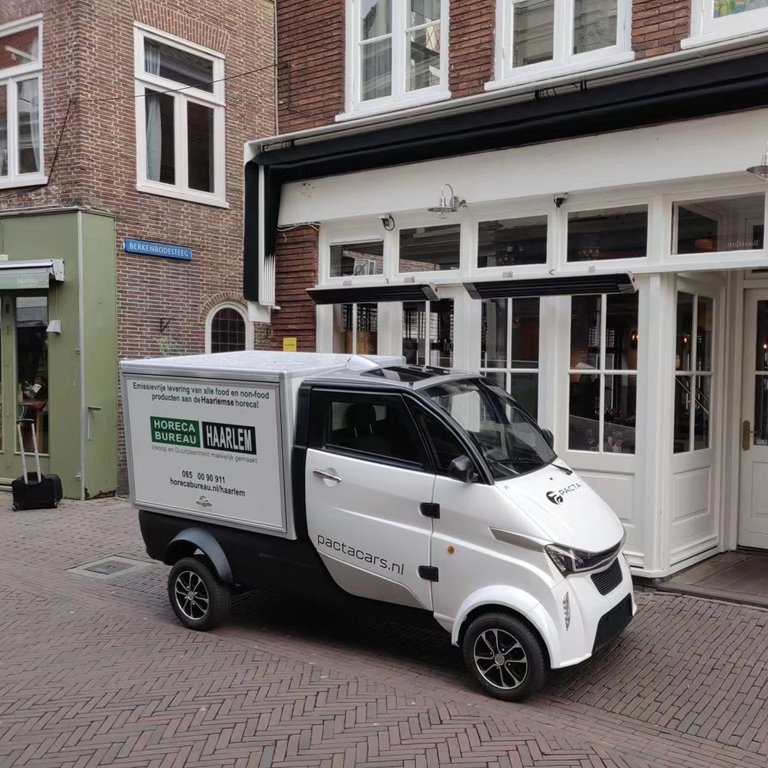

The last-mile delivery solution for the city. Cold chain, takeaway, express delivery, urban logistics, and supermarket distribution, etc. It's a cost-effective short-distance cargo transportation vehicle within the city.

4 wheels, 1 seat

Size: 3600*1345*1765mm

Cargo box dimensions: 1635*1050*1058mm

Open hopper dimensions: 1635*1050*400mm

Vehicle weight: 510kg

Load capacity: 550kg

Max. speed: 52km/h

105Ah lithium battery. Max distance: 90km, with a fast charge system fully charging in 3 hours.

Options include a 206Ah lithium battery, reaching a max distance of 170km, with a fast charge system fully charging in 6 hours.

Color options: White&Silver, Red&Silver, Blue&Silver, Grey&Black

Vehicle Details:

1-ABS Resin Plastic Cover and Painting
ABS resin injection molding, with excellent comprehensive physical and mechanical properties, impact resistance, and dimensional stability, being two-thirds lighter than iron.

Automotive-grade paint, computerized paint mixing, professional spraying equipment.

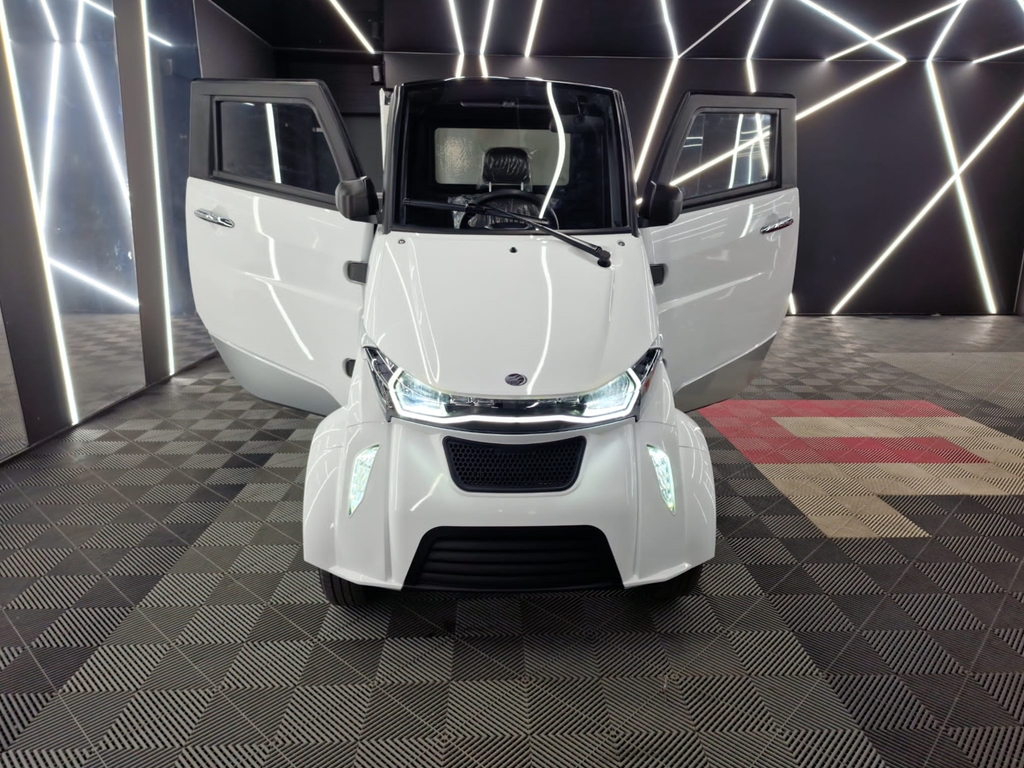

2-LED Light System
Integrated LED headlights and taillights.
Turn signals, brake lights, reverse lights. Low power consumption and a 50% increase in light transmittance.

3-Front Windshield
CCC certified tempered and laminated glass enhance visual effects and safety performance.

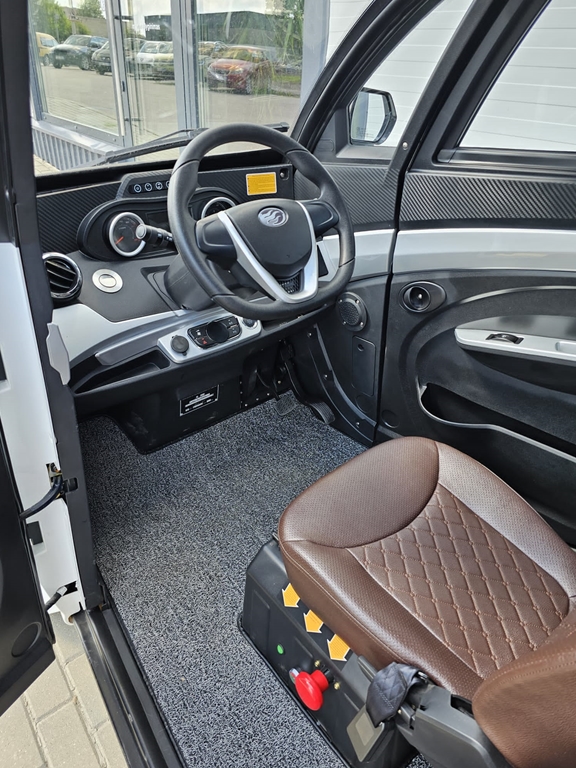

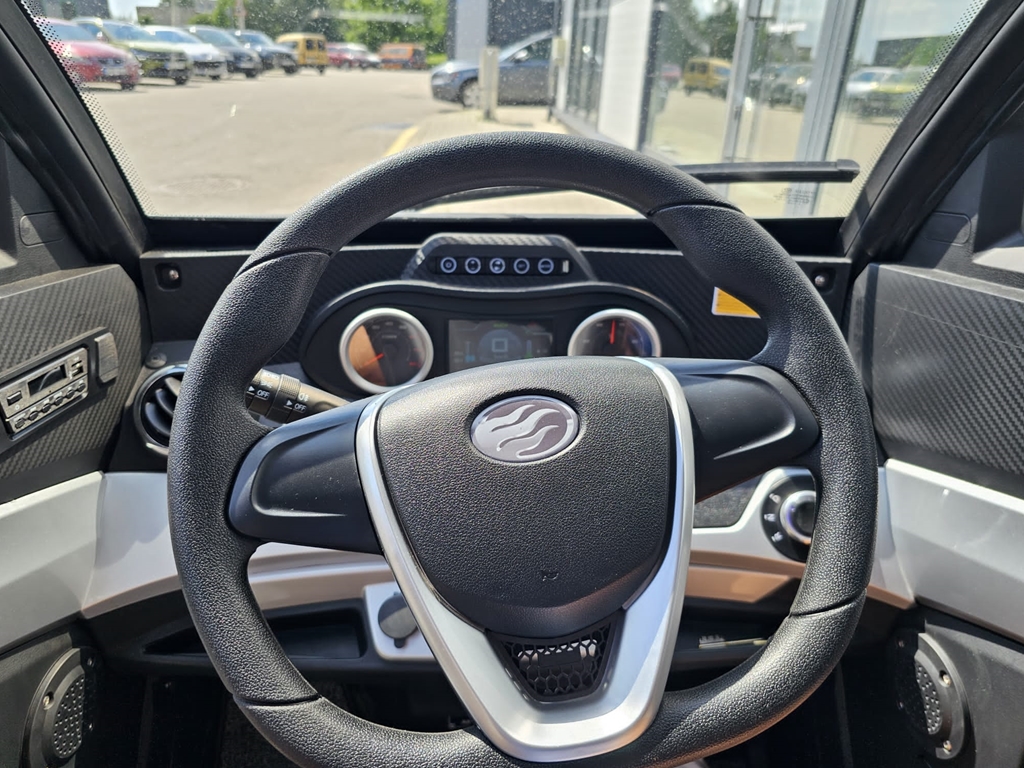

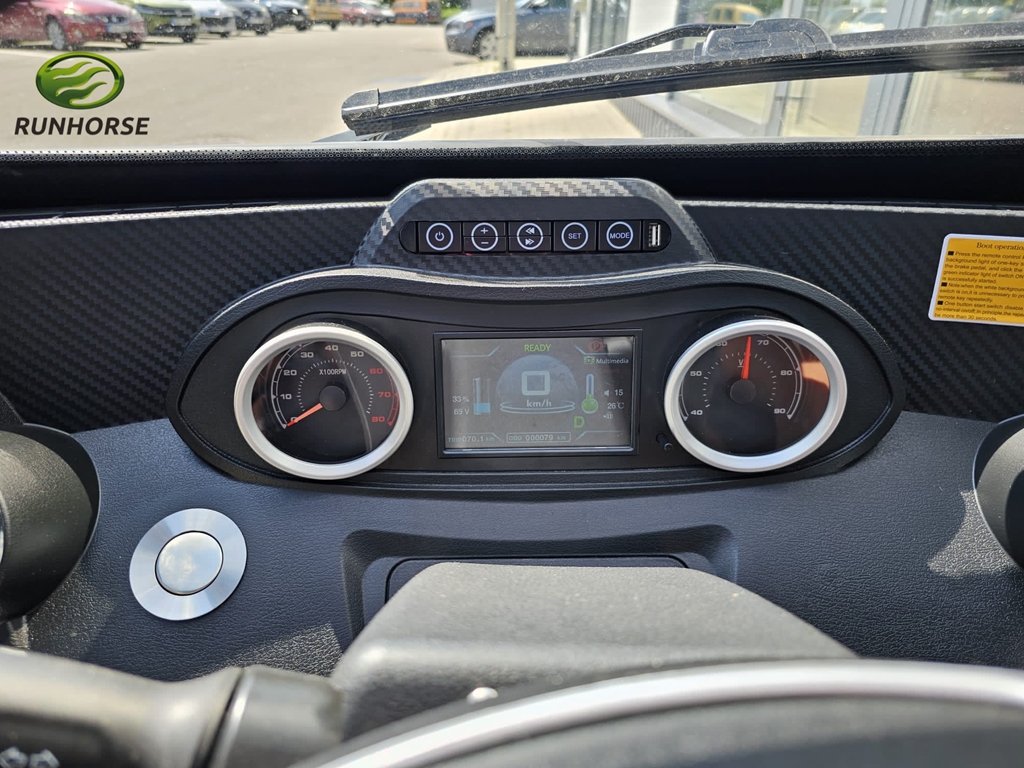

4-Instrument Panel
LED display, voltmeter, power meter, odometer and reverse camera, also Bluetooth, MP5, USB connector.

5-Central Lock and One-button Start

6-Electric Windows

7-Carpet

8-Optional Air Conditioner

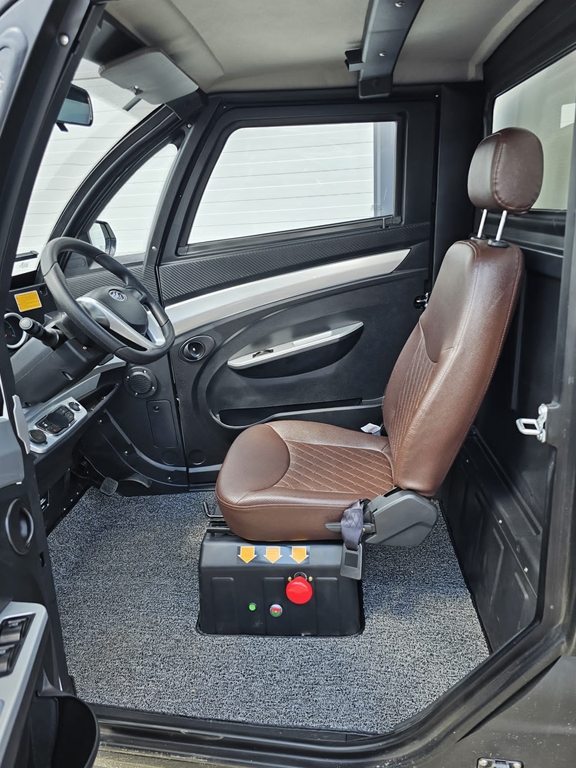

9-Seat with Seatbelt

PU-leather, optional swivel seat for easy entry and exit.

10-AC Motor
Powerful and waterproof, lower noise, brushless, maintenance-free AC motor. Equipped with a fast home charging system.

11-Lithium Iron Phosphate Battery
With BMS system, over 2,500 charge cycles (8-10 years) in working environments from -30°C to 50°C. Equipped with hill-start assist control.

Can be remotely monitored online. Automatic shut-off after full charge.

12-Electronic Control System
Use reliable and waterproof Enpower electric control system.

13-Brake System
Front disc and rear drum, two-circuit hydraulic brake.

14-Suspension System
Independent front axle and suspension, with a simple structure and excellent stability. The integrated rear axle consists of a seamless steel tube welded axle housing, which is low-noise, durable, and reliable.

15-Frame & Chassis
GB Standard Steel, pickled, phosphatized for corrosion resistance.

Cargo box options:

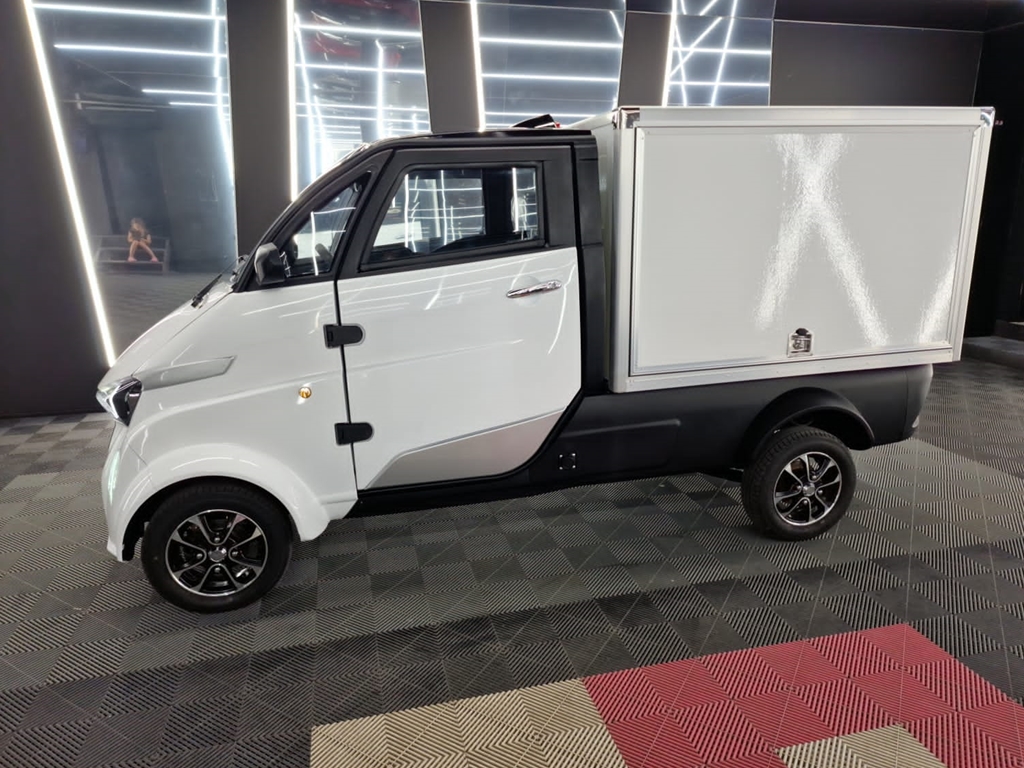

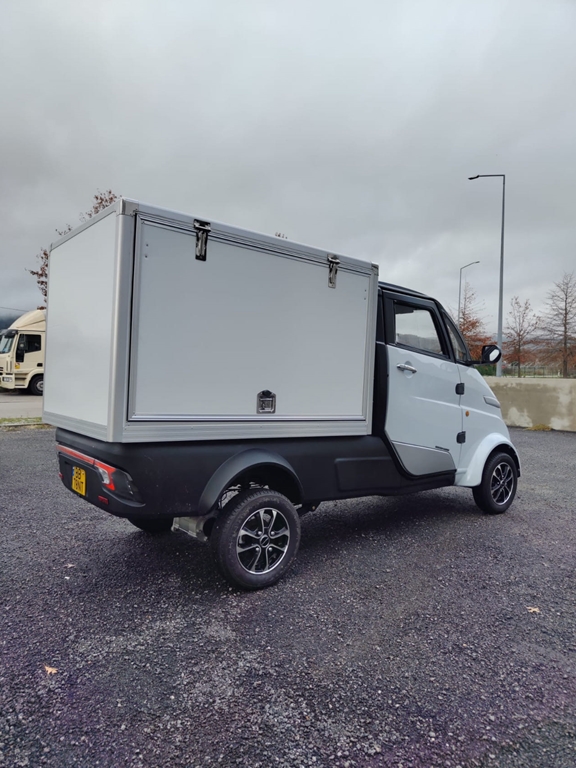

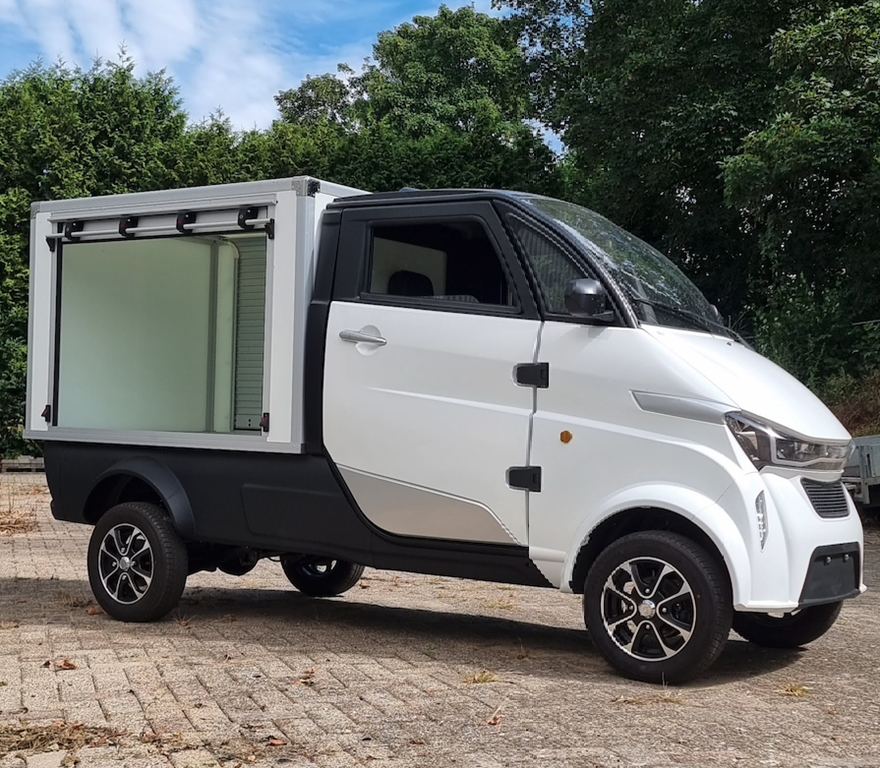

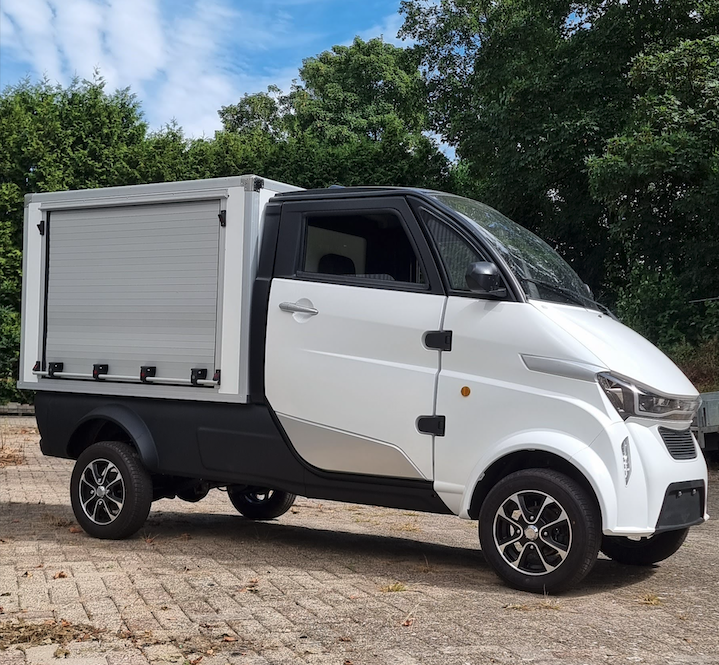

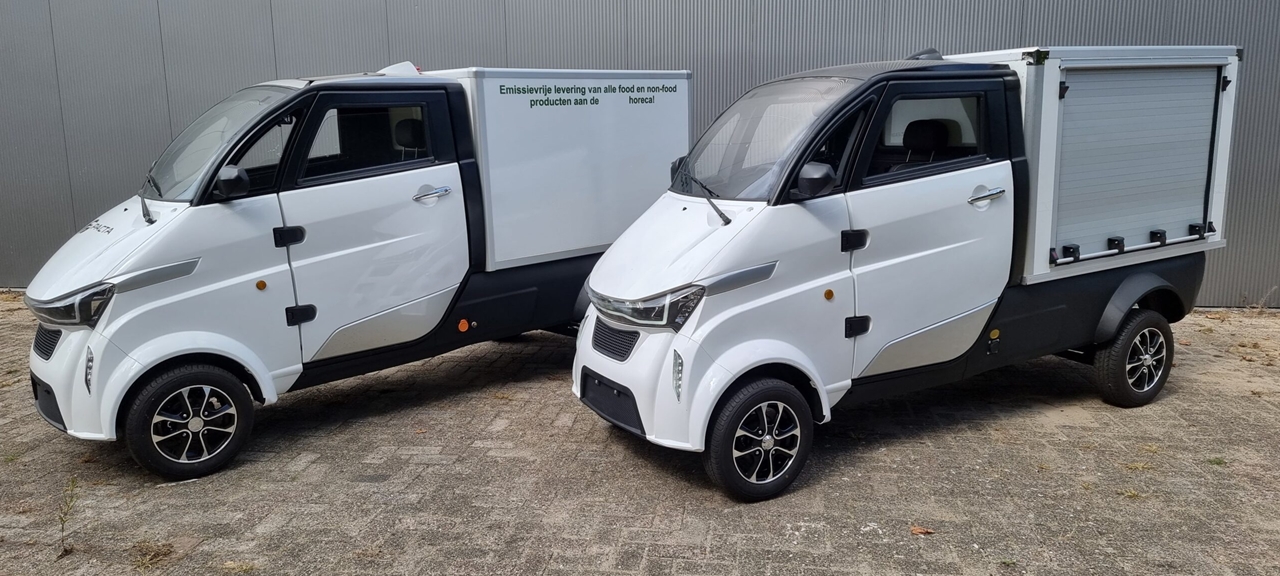

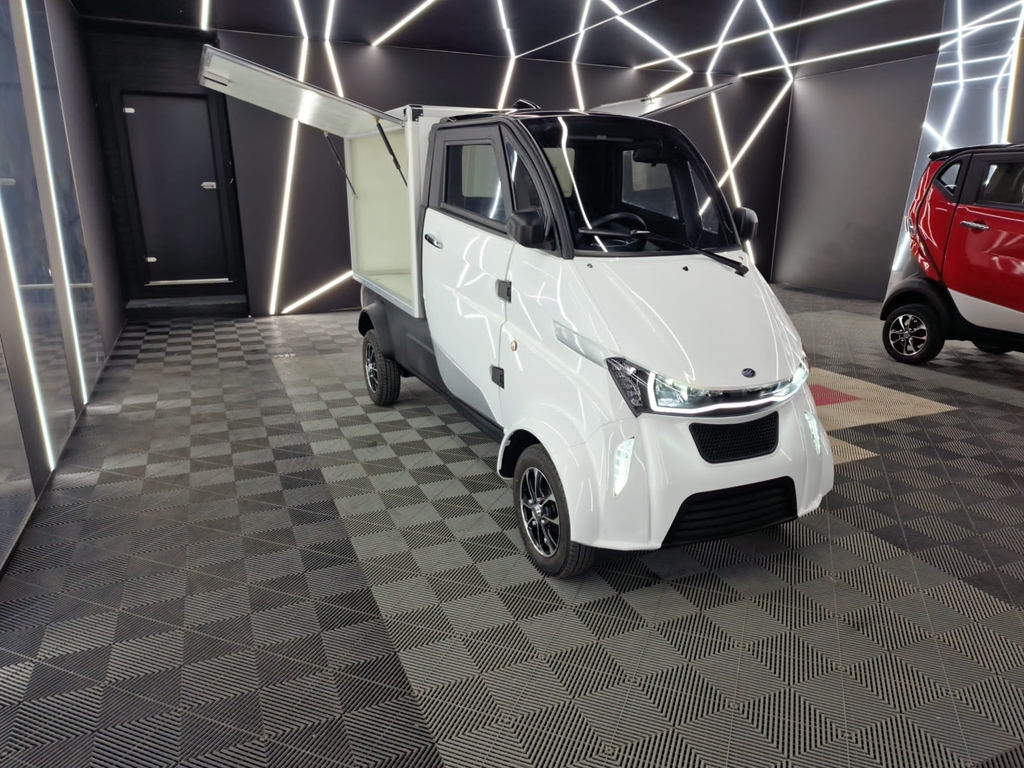

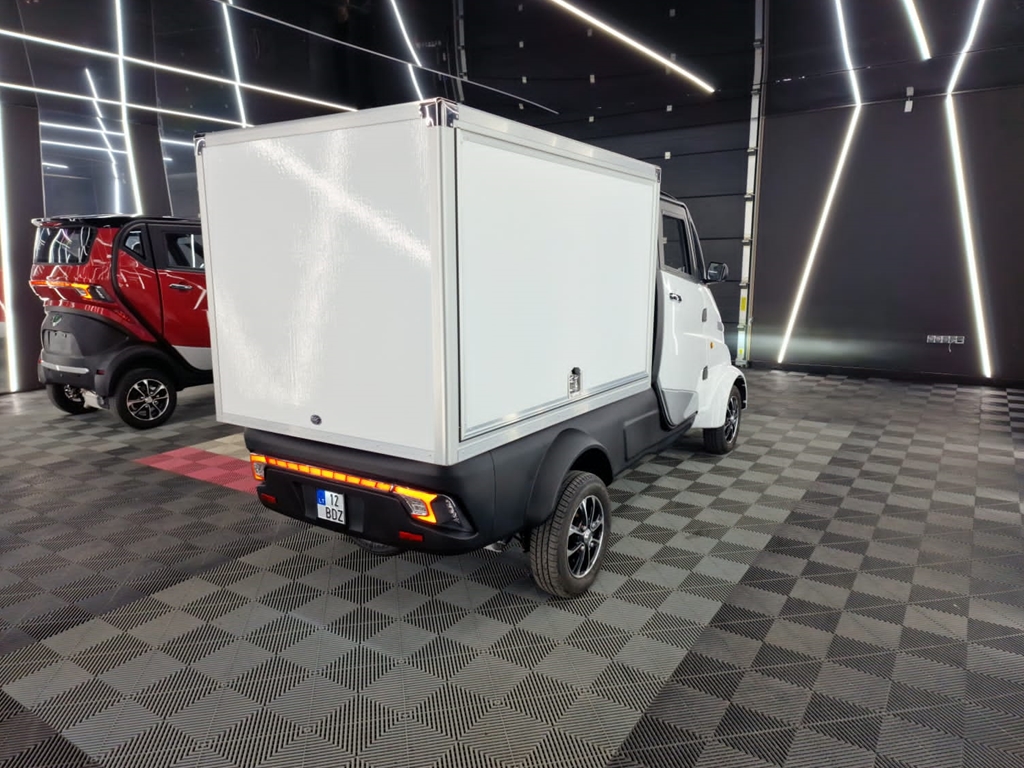

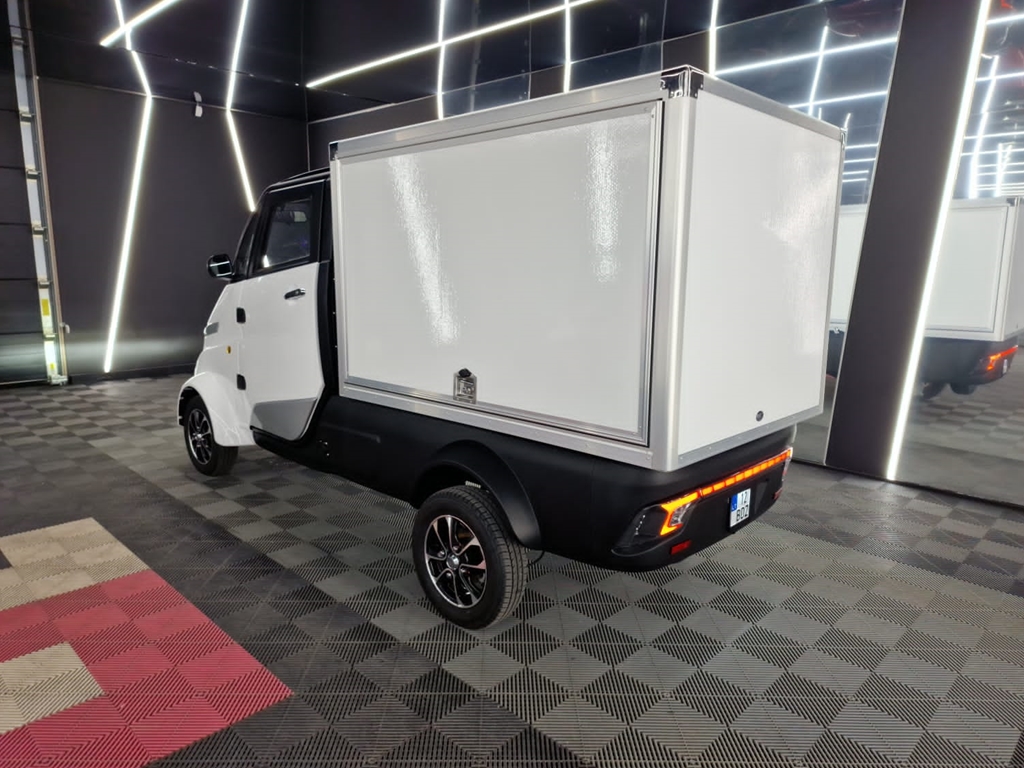

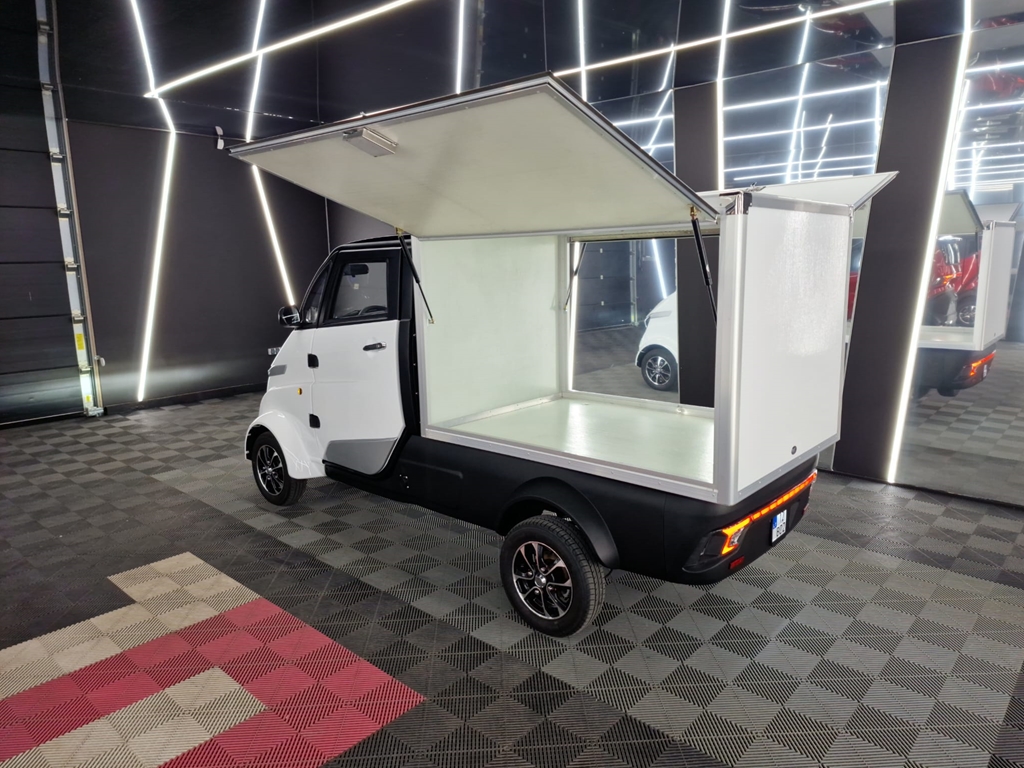

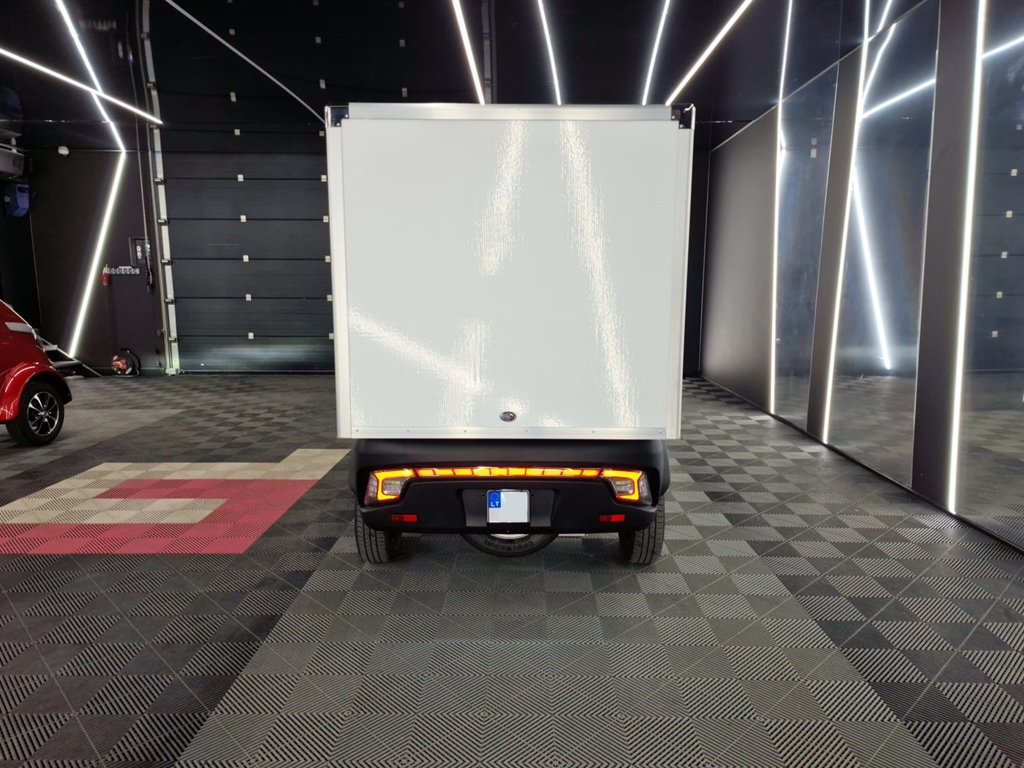

1-Logistics Box-- Cellular panel (Single side open door, double side open door):
Size: 1635*1150*1058mm

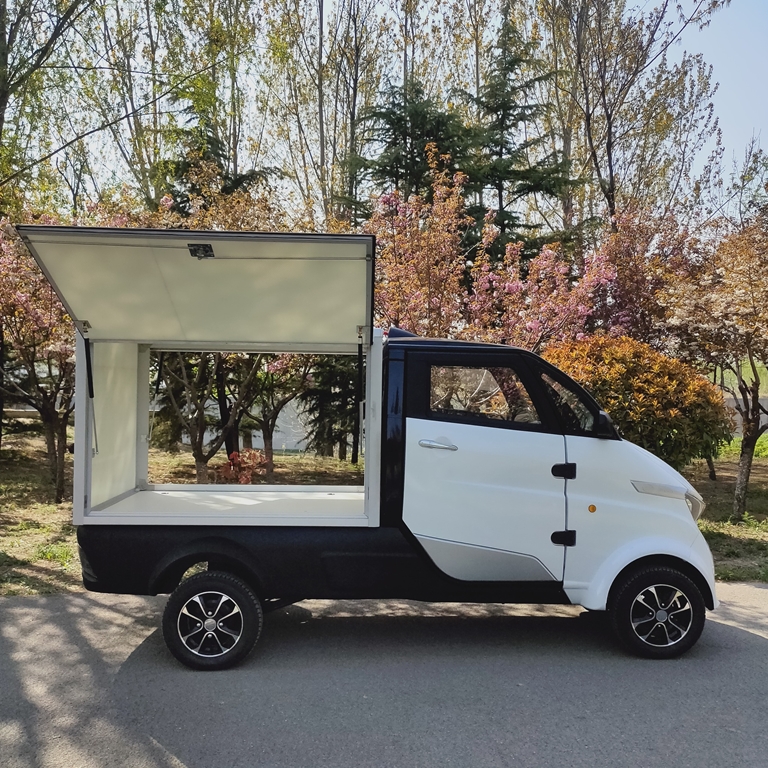

2-Optional Cargo Box - Equipped with cooling and heating system

Size: 875*1080*995mm

Designed with a cooling system for transportation of fruits, vegetables, seafood, beverages, medicine, adjustable between -18°C to 10°C.

Heating system design for takeaway delivery, adjustable between 40°C to 60°C. The cargo box can be divided into two compartments, one for cooling and one for heating.

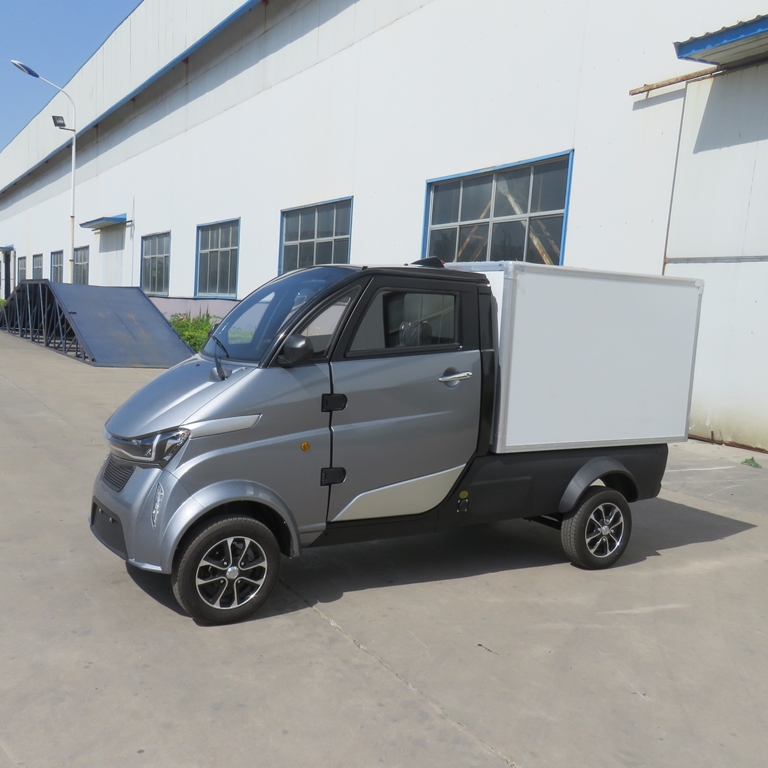

V03 Refrigerated logistics box

Heating system design for takeaway delivery, adjustable between 40°C to 70°C. The cargo box can be divided into two compartments, one for cooling and one for heating. Customers can adjust the temperature according to their needs to better protect the transported food or medicine.

Semi-refrigerated and semi-heated logistics box

3-Aluminum Alloy Hopper
Size: 1635*1345*370mm
After heat treatment strengthening and alloy strengthening, its strength will be greatly increased.

Advantages:

1-Save Cost

CKD (Completely Knocked Down) assembly reduces customs duties and transportation costs, providing savings.

Performing local CKD assembly is very simple to reduce tariffs and transportation costs.

2-Save Time
4-5 hours of fast charging can be achieved using household electricity.

3-Car sharing system
Customers can download the app, scan the QR code on the vehicle to use it. Users can pay the cost directly online. The company can manage all vehicles through phones.
