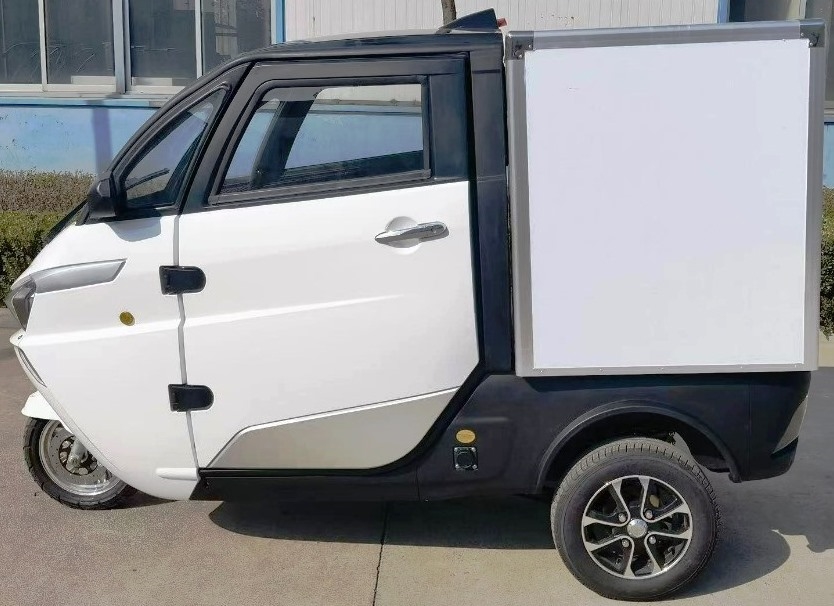

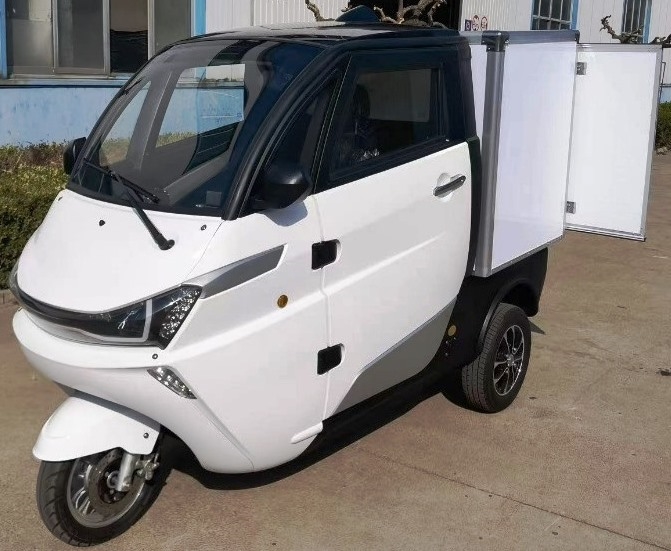

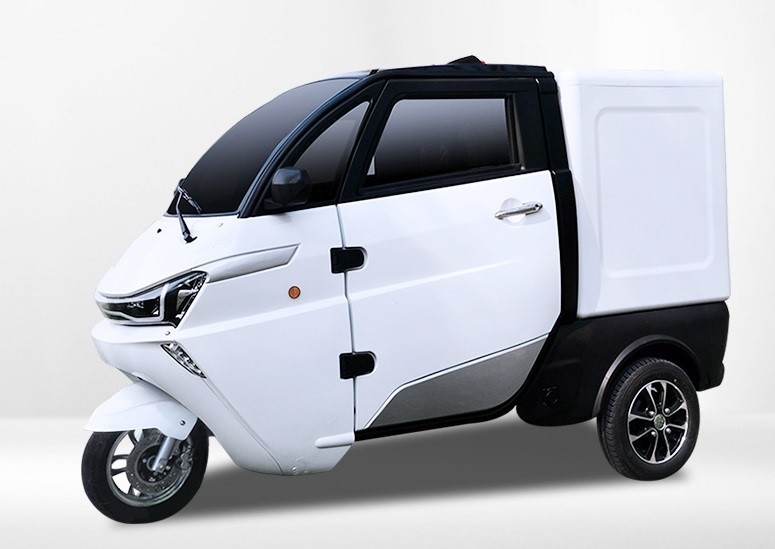

J1-C, EEC approved (L5e)

The delivery solution for the last mile of the city. Cold chain, takeaway, express delivery, logistics, and supermarket distribution, etc., it is the short-distance cargo transportation vehicle within the city.

3 wheels, 1 seat
Size: 2715x1180x1810mm
Cargo box size: 880*1160*995mm
Hopper size: 875*1180*400mm
Curb weight: 400kg
Loading capacity: 300kg
Max. speed: 45km/h

105Ah lithium battery Max distance 115km, with fast charge system, full charge in 3 hours;
Options 206Ah lithium battery Max distance can reach 195km, with fast charge system, full charge in 6 hours.
Colors: White & Silver, Red & Silver, Blue & Silver, Grey & Black

1-ABS Resin Plastic Cover and painting
Whole cover with ABS Resin plastic, mechanical properties of ABS have excellent comprehensive physical, impact resistance, Stability, two-thirds lighter weight than iron parts.

2-LED Light System
The integrate LED headlight & rear-light
Turn lights, brake lights, reverse lights. Low power consumption and increase 50% more in light transmittance.

3-Front Windshield
3C certified tempered and laminated glass Improve visual effect and safety performance.

4-Dashboard
LED display, volt meter, power meter, kilometer and reverse camera, plus Bluetooth, MP5, USB connector.

5-Central lock and One button start
Central lock, Press the start button and step the brake pedal at the same time, easy to start the vehicle.

6-Electric Windows and doors
Two electric control buttons for both sides of the windows

7-Mat on the whole car

8-Optional Air Conditioner

9-Seat with belt
Genuine Leather with PU, optional rotating seat for easy getting on and off.

10-AC Motor (3000W)
AC motor with powerful and waterproof, lower noise, no carbon brush, maintenance-free. Equipped with a fast home charging system.

11-Lithium Iron Phosphate Battery
With BMS system, more than 2,500 times charging cycles (8-10 years) under working environment from -30 to 50 °C. Equipped with hill-start assist control.

Can be remote online monitoring. Automatic power off after a full charge.

12-Electronic Control System
Use En-power electric control system, reliable and waterproof

12-Brake System

Front-disc Rear-disc, two-circuit hydraulic brake.

13-Suspension System

The front axle and suspension are independent suspensions, simple structure and excellent stability. The integrated rear axle, axle housing welded by seamless steel tube, lower noise, more durable, and reliable.

15-Frame&Chassis
GB Standard Steel, under pickling, Photostatting, and corrosion-resistant treatment

Two kinds of Cargo Box for choose:
1, Logistic Cargo
Size: 875*1080*995mm

1-Cargo Box --BF: Basalt Fiber
Size: 875*1080*995mm
A high-performance new type of inorganic environmental protection can degrade directly in the environment after being discarded. It has excellent properties such as electrical insulation, corrosion resistance, and high-temperature resistance.

2-Optional Cargo Box-Equip with cooling system and heating system.

Size: 875*1080*995mm
Cooling system design for fruit, vegetable, seafood, drinks, medicine transportation. Adjustable refrigeration temperature from -18℃ to 10℃.

Heating system design for takeaway, adjustable heating temperature from 40℃ to 60℃. Cargo box can be divided into two spaces, one for cooling and one for heating.

3-Aluminum Alloy Open Box
Size: 875*1080*370mm
After heat treatment and alloying strengthening, its strength will be greatly increased.

Advantage
1-Save Cost
CKD (Completely Knocked Down) assembly reduces and saves customs duty & transportation cost.

2-Save time
Fast charger within 4-5 hours under home charger.

3-3. Car sharing system
Customers can download the app, scan the QR code on the vehicle. Users can pay the cost directly online. The company can manage all vehicles through the phones.
